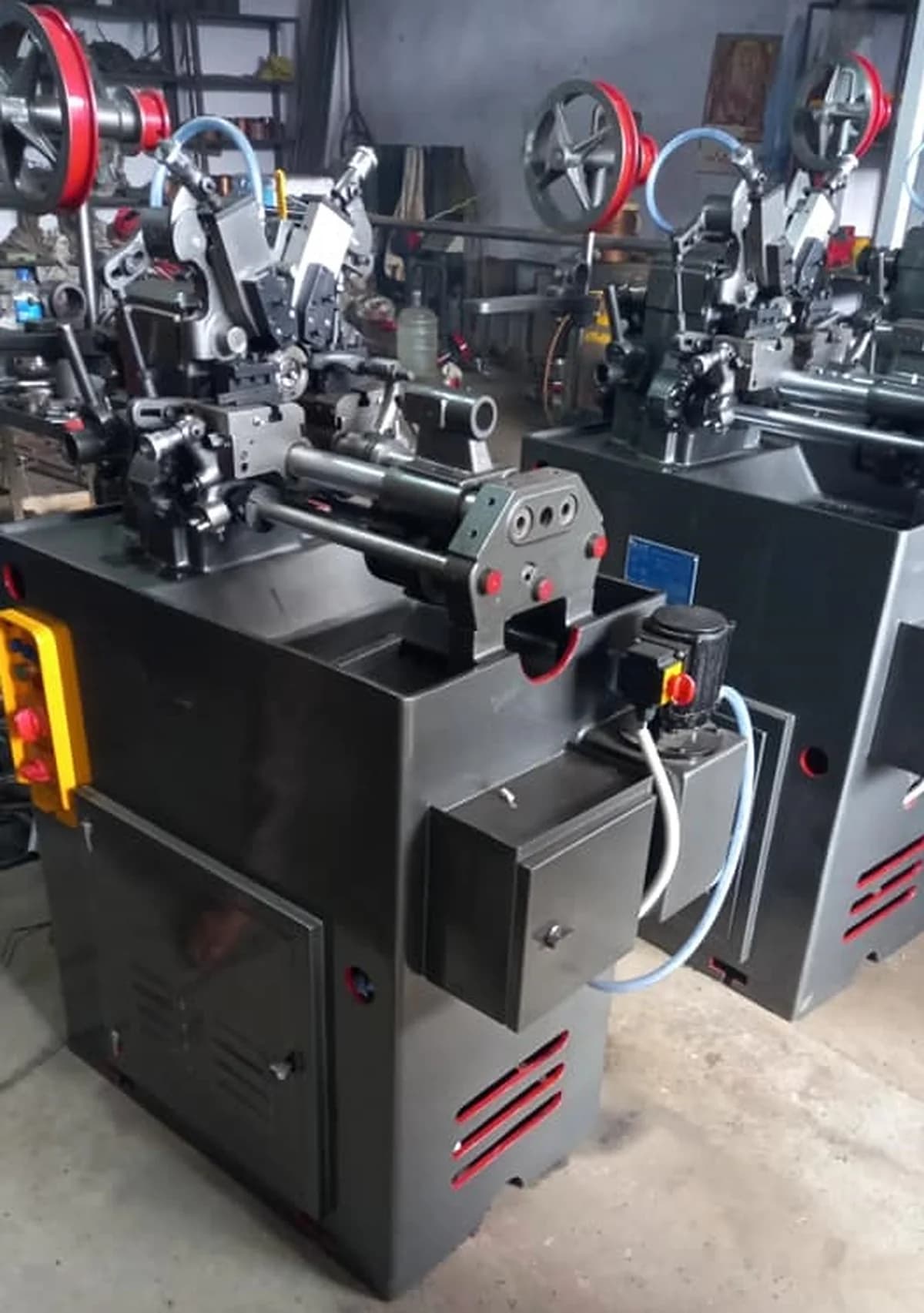

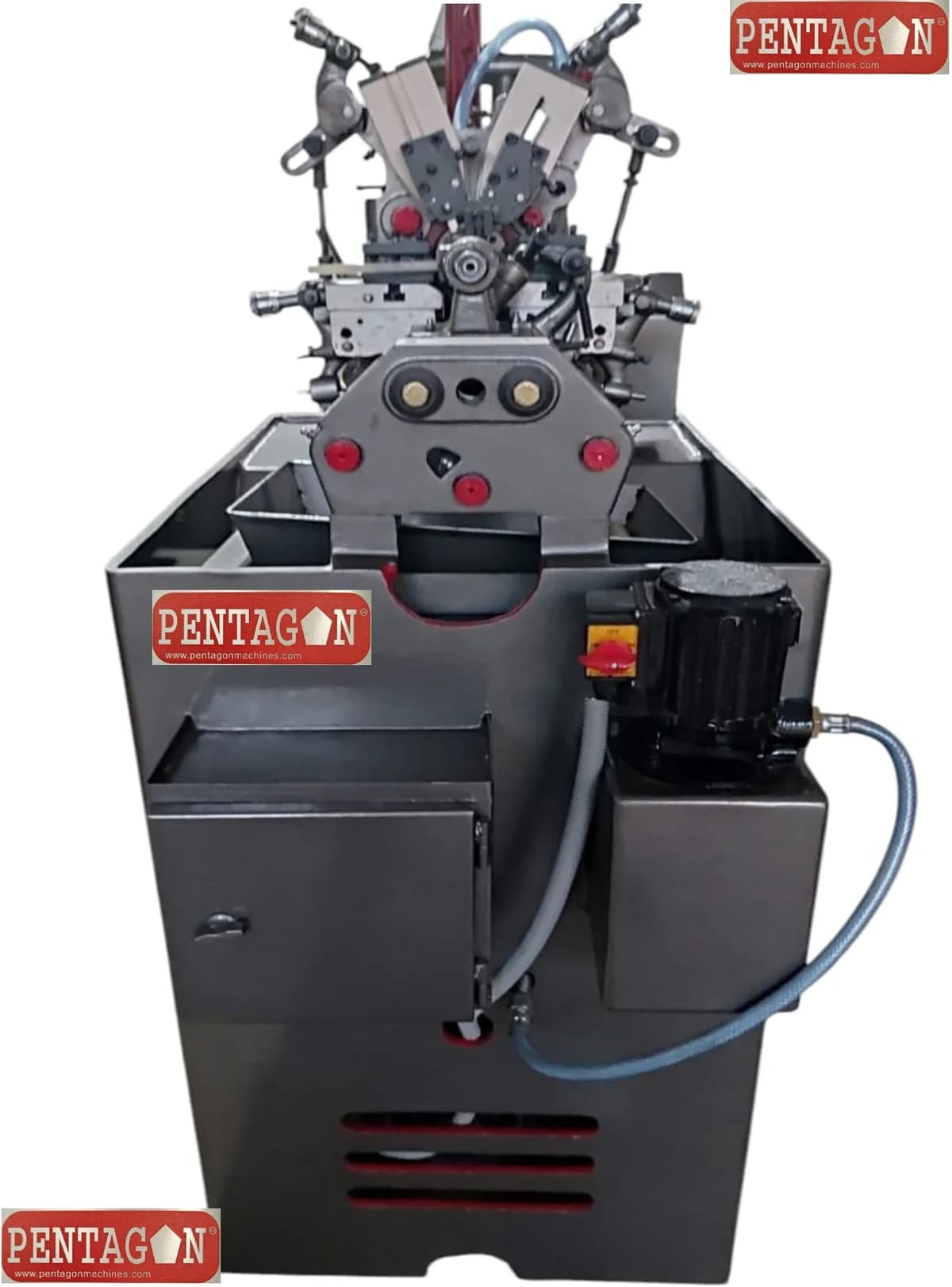

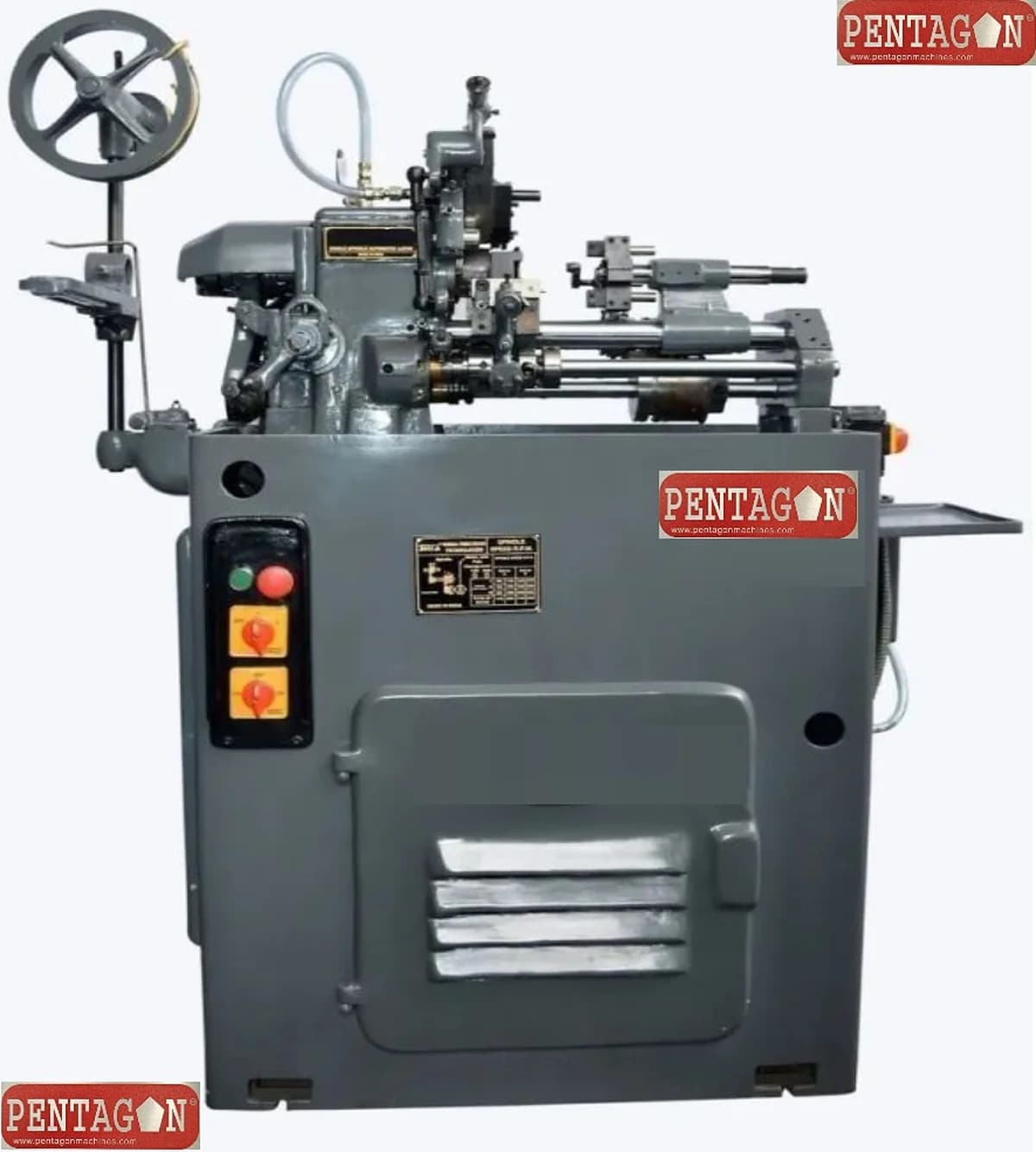

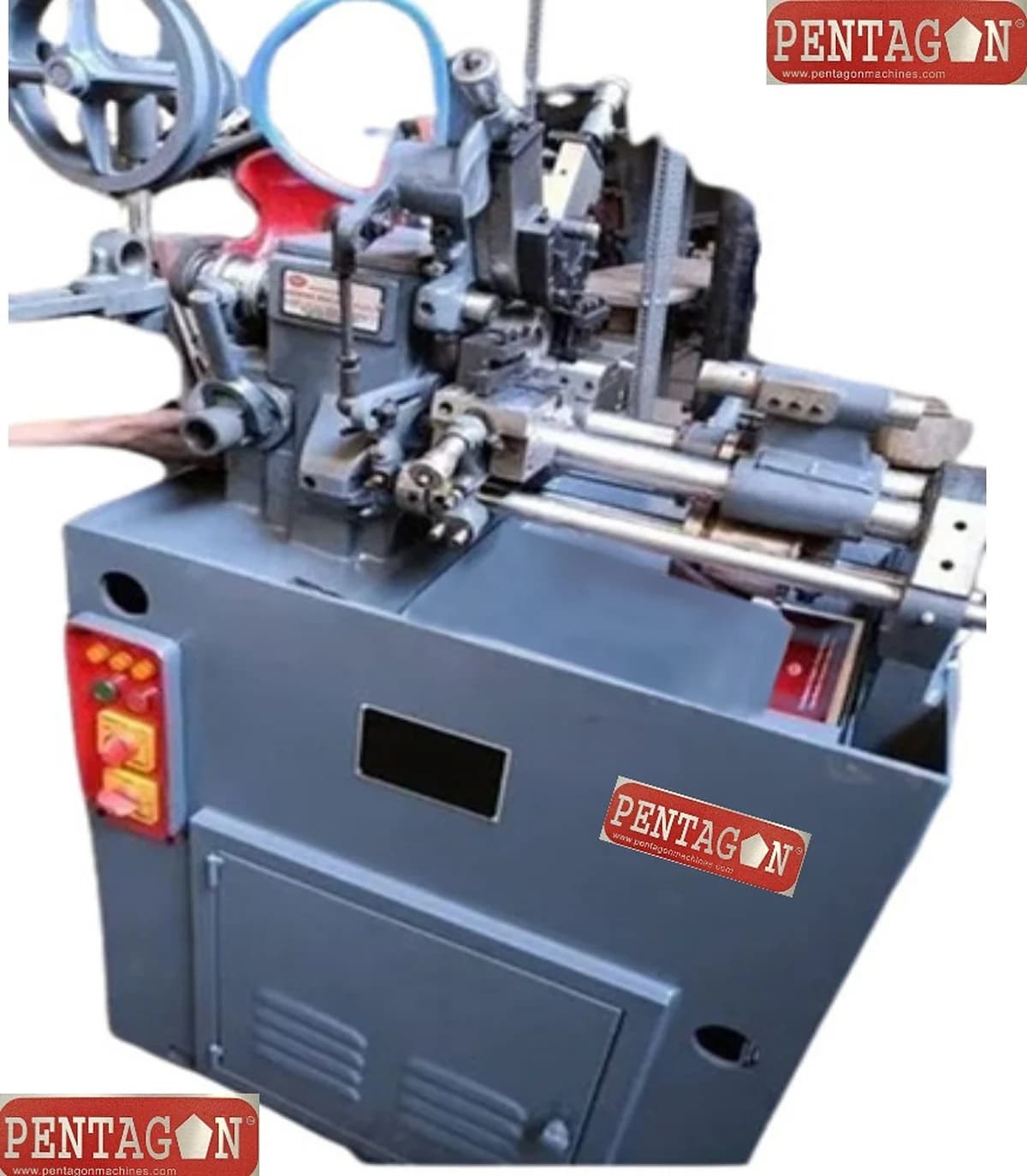

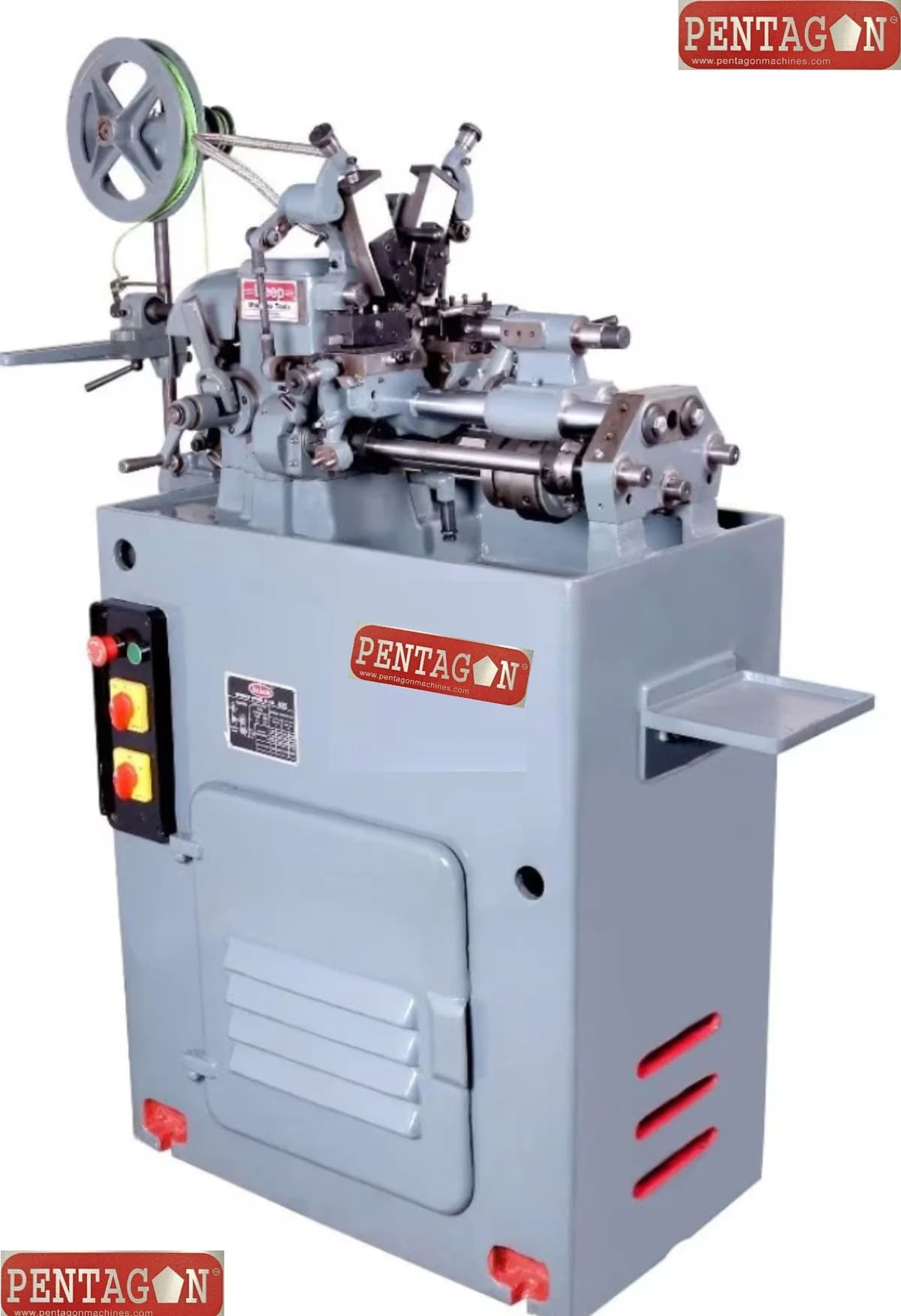

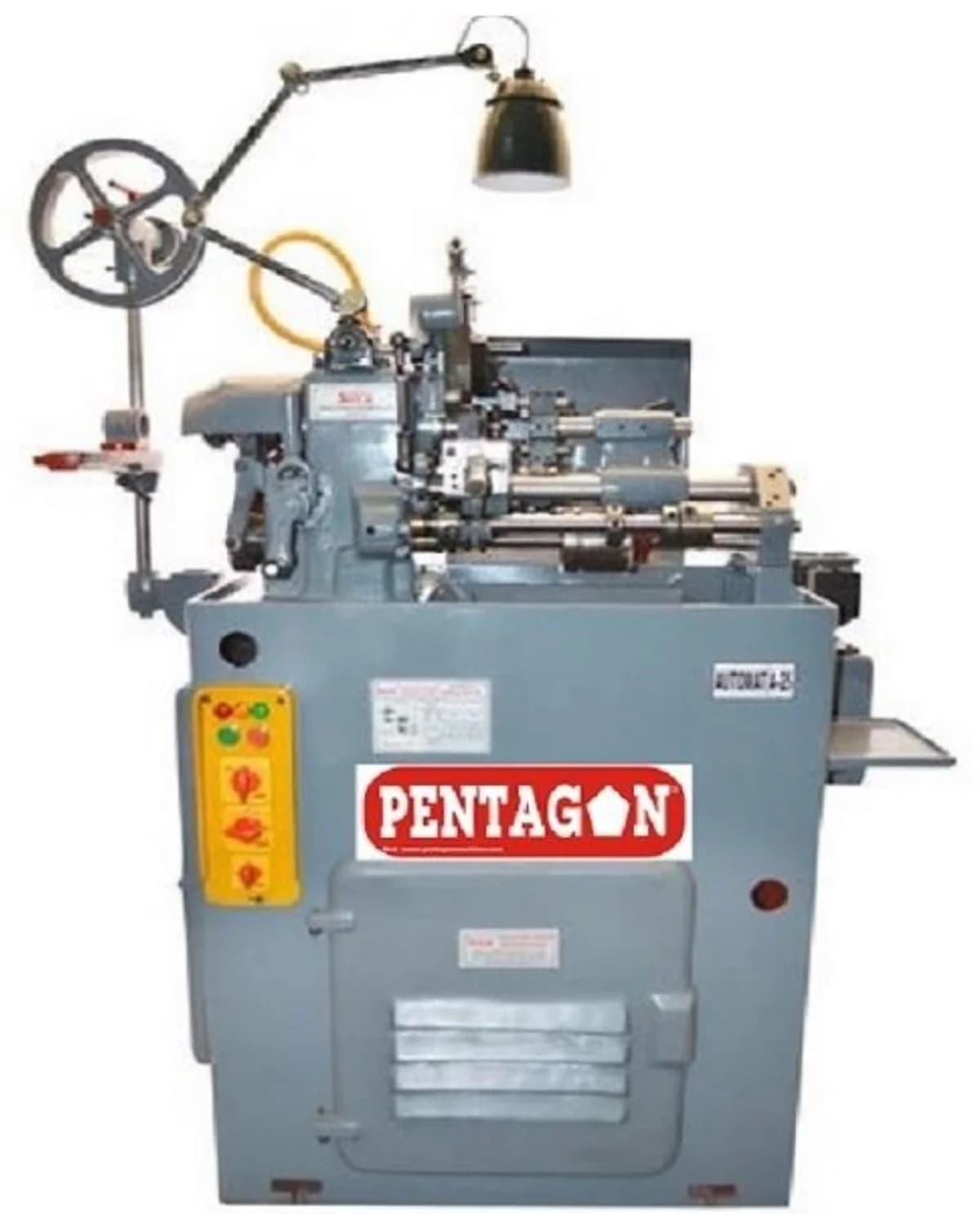

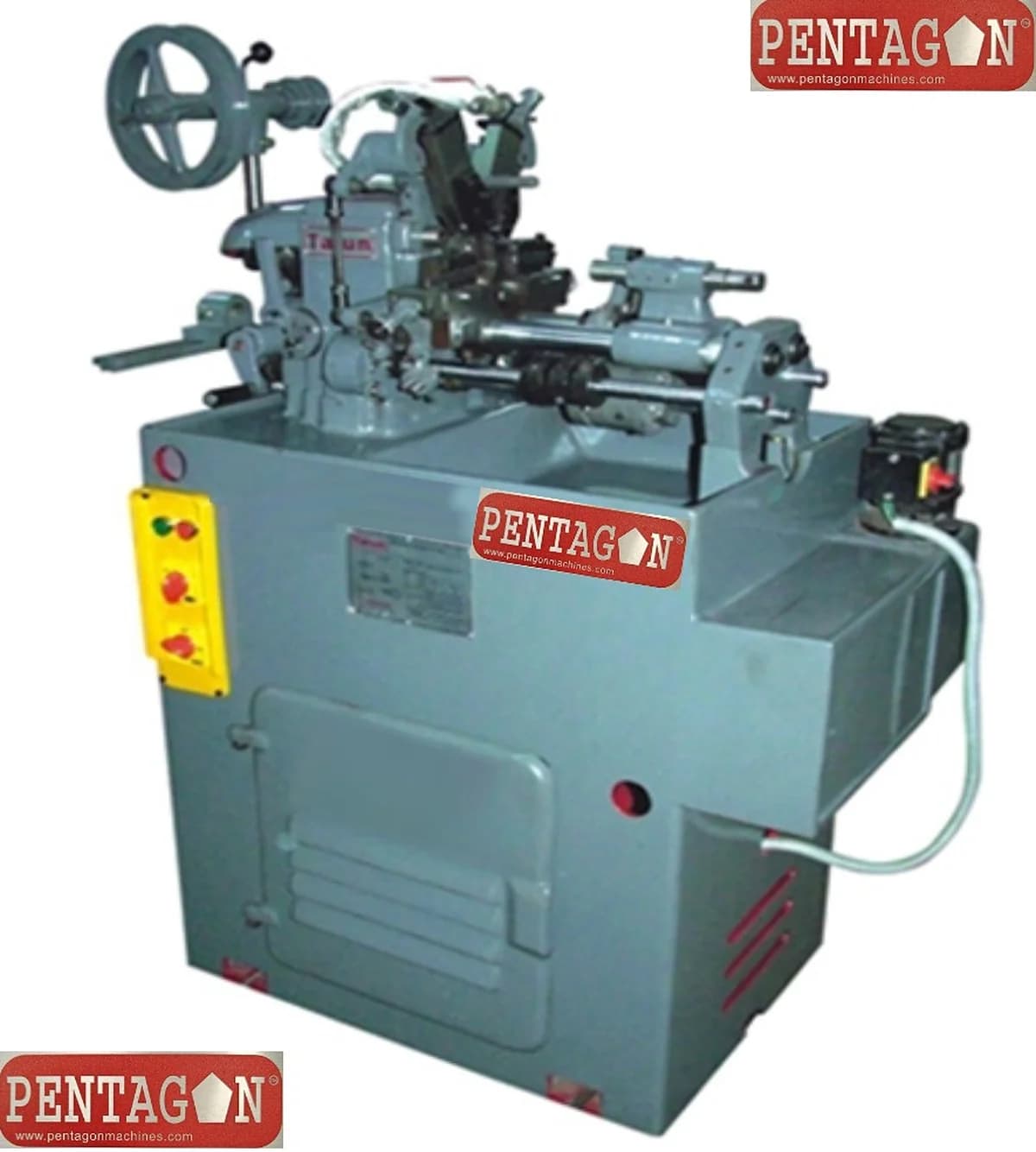

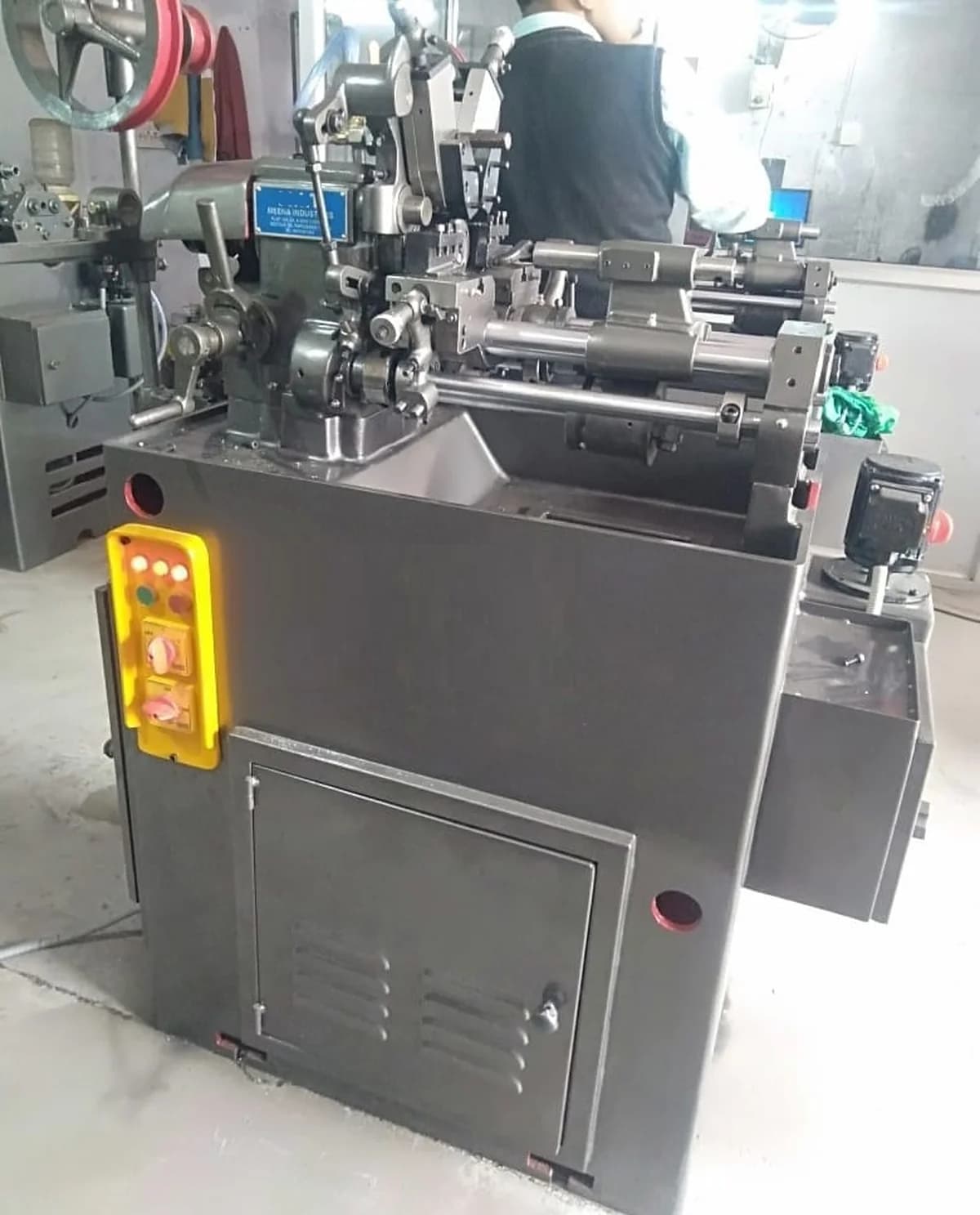

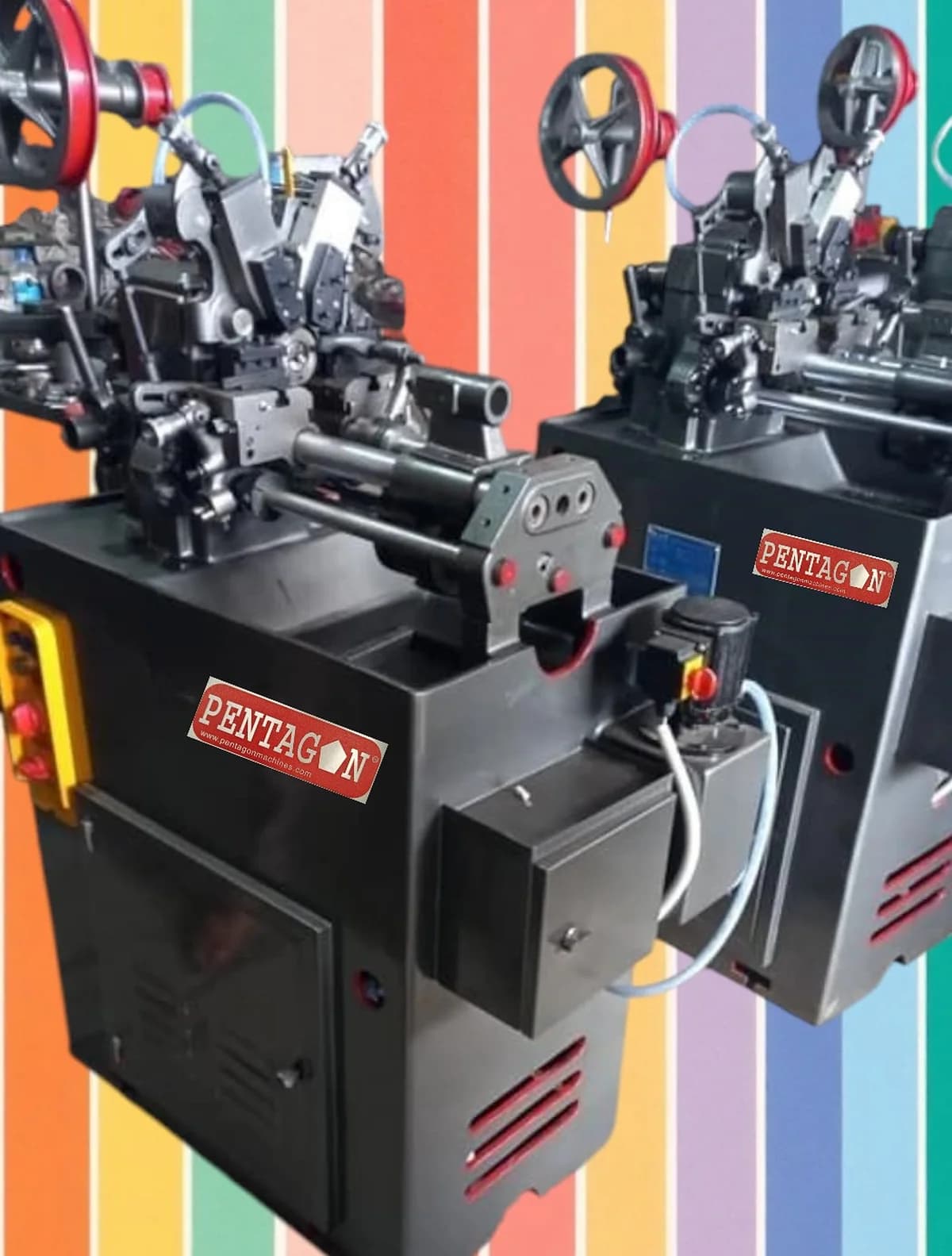

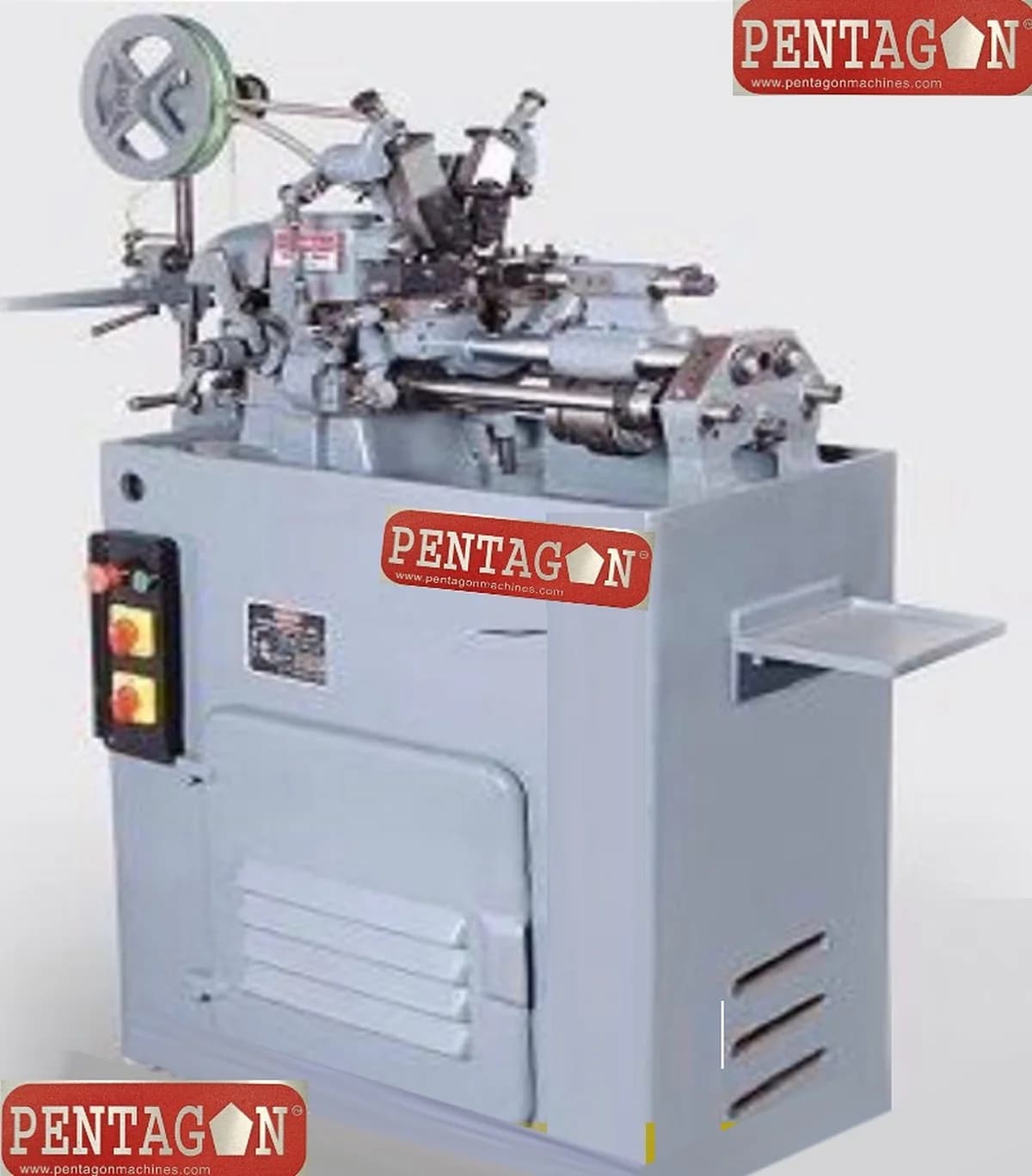

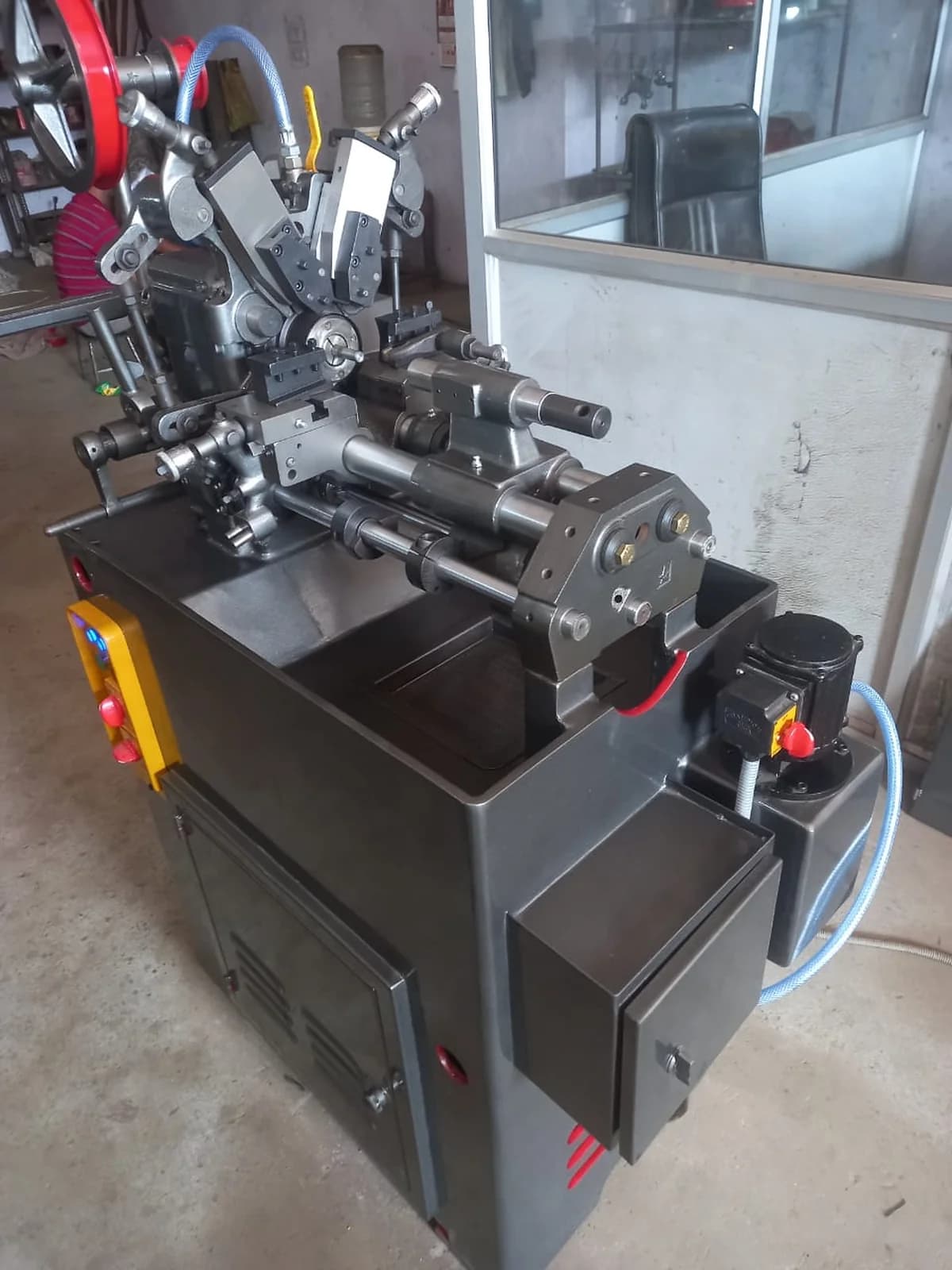

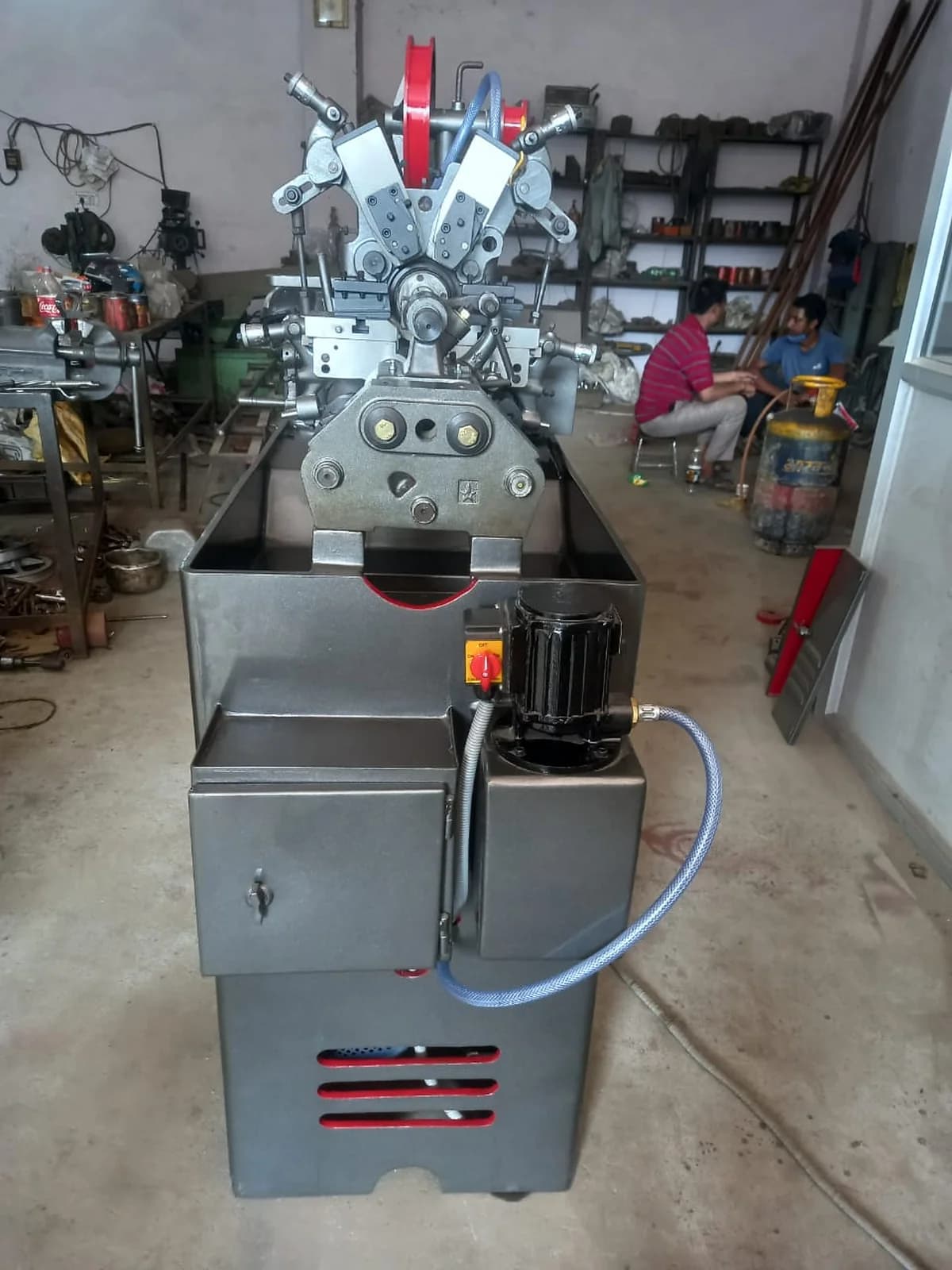

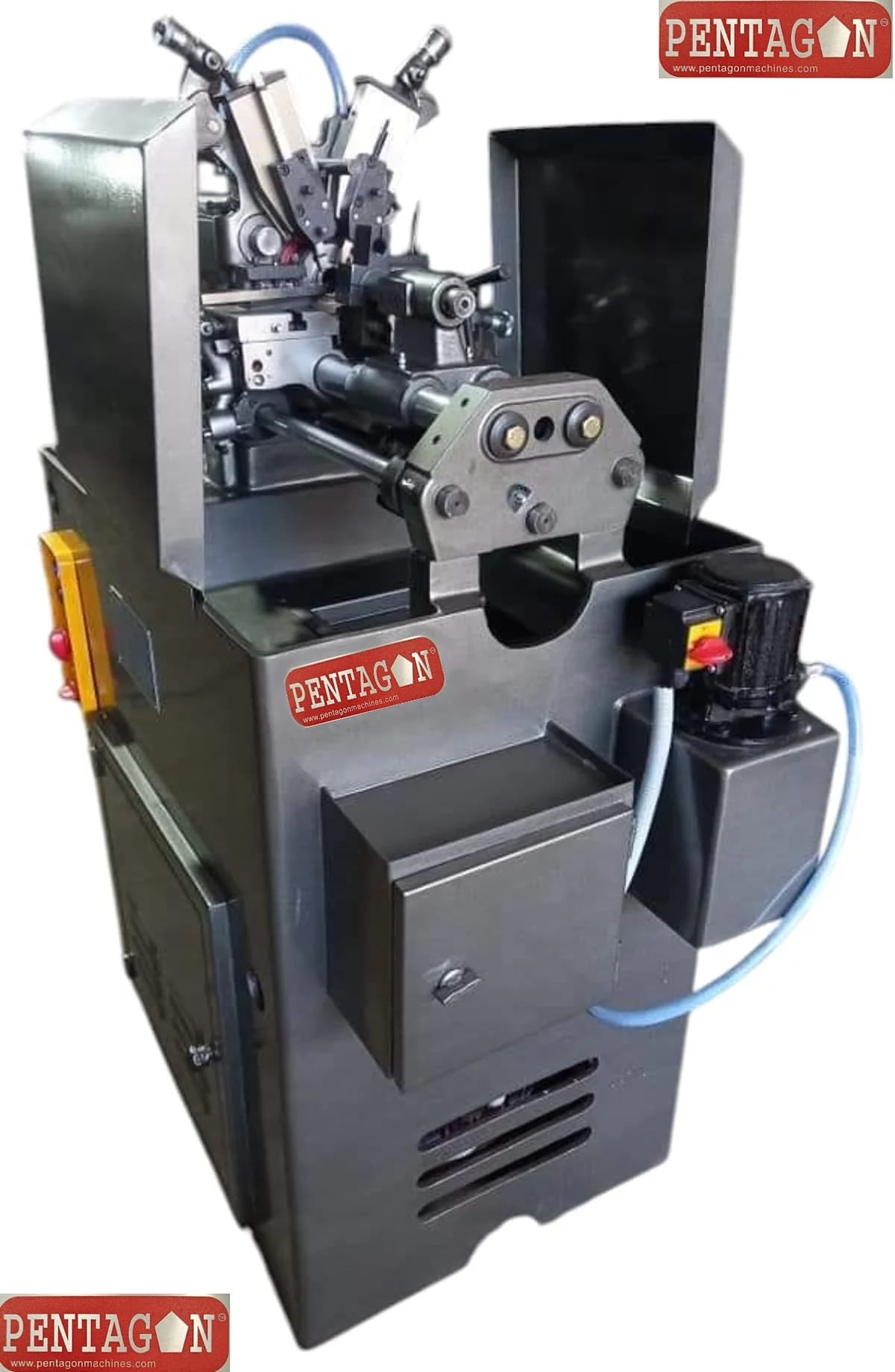

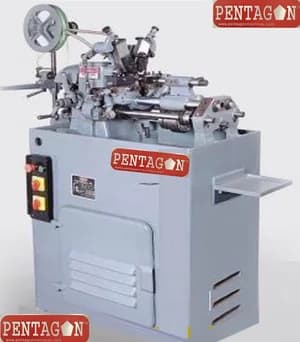

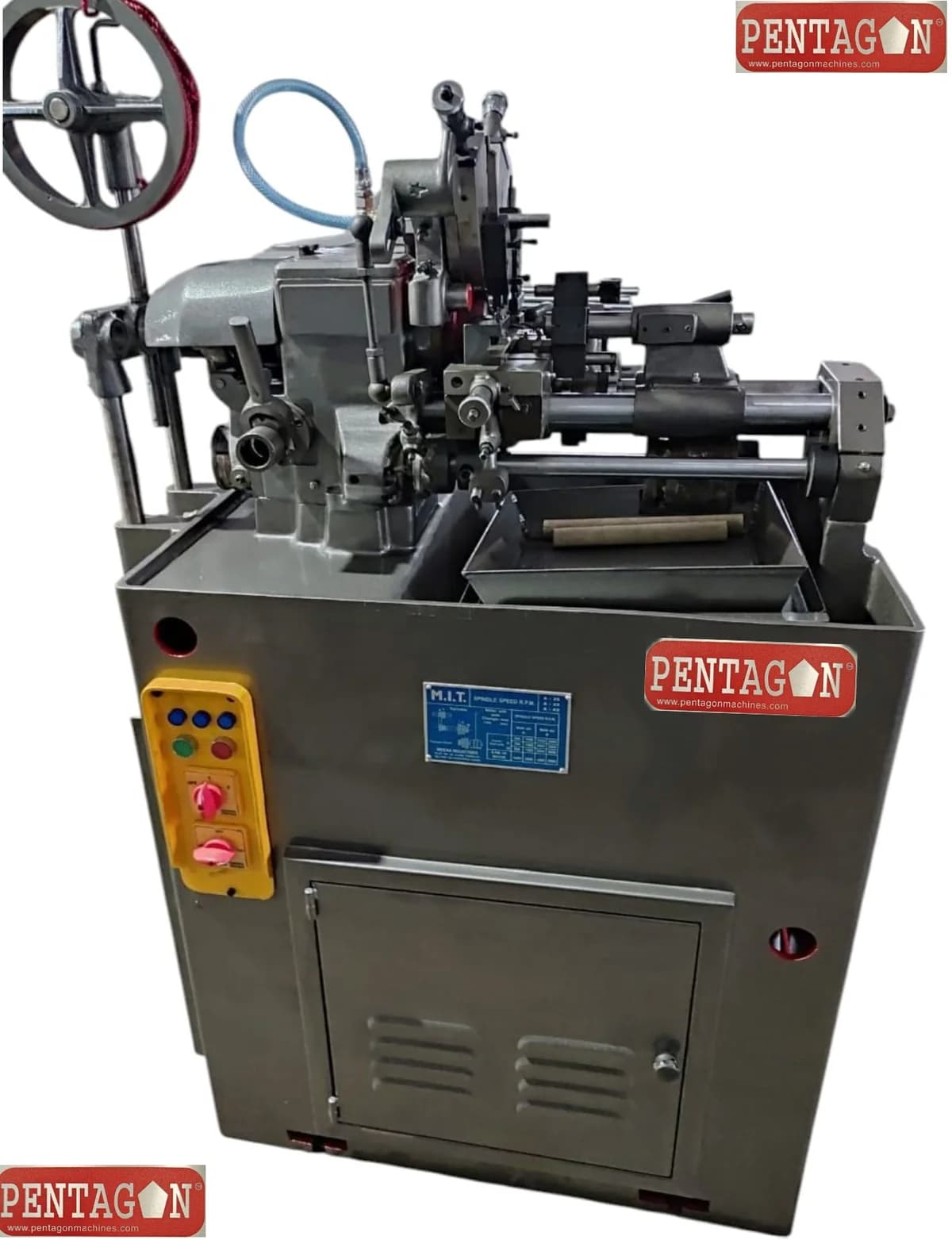

Single Spindle Automat Traub Machine — PAT-25
Engineered for precision turning, this single spindle automatic lathe excels in high-volume manufacturing environments. Suitable for automotive and general engineering applications. • Maximum bar capacities range from 25mm to 42mm round stock • Spindle speeds up to 2800 RPM optimize cycle times • Robust build supports continuous industrial operation • Versatile for shafts, fittings, and complex components

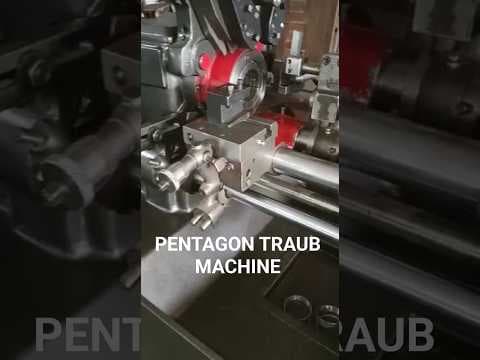

See it in action

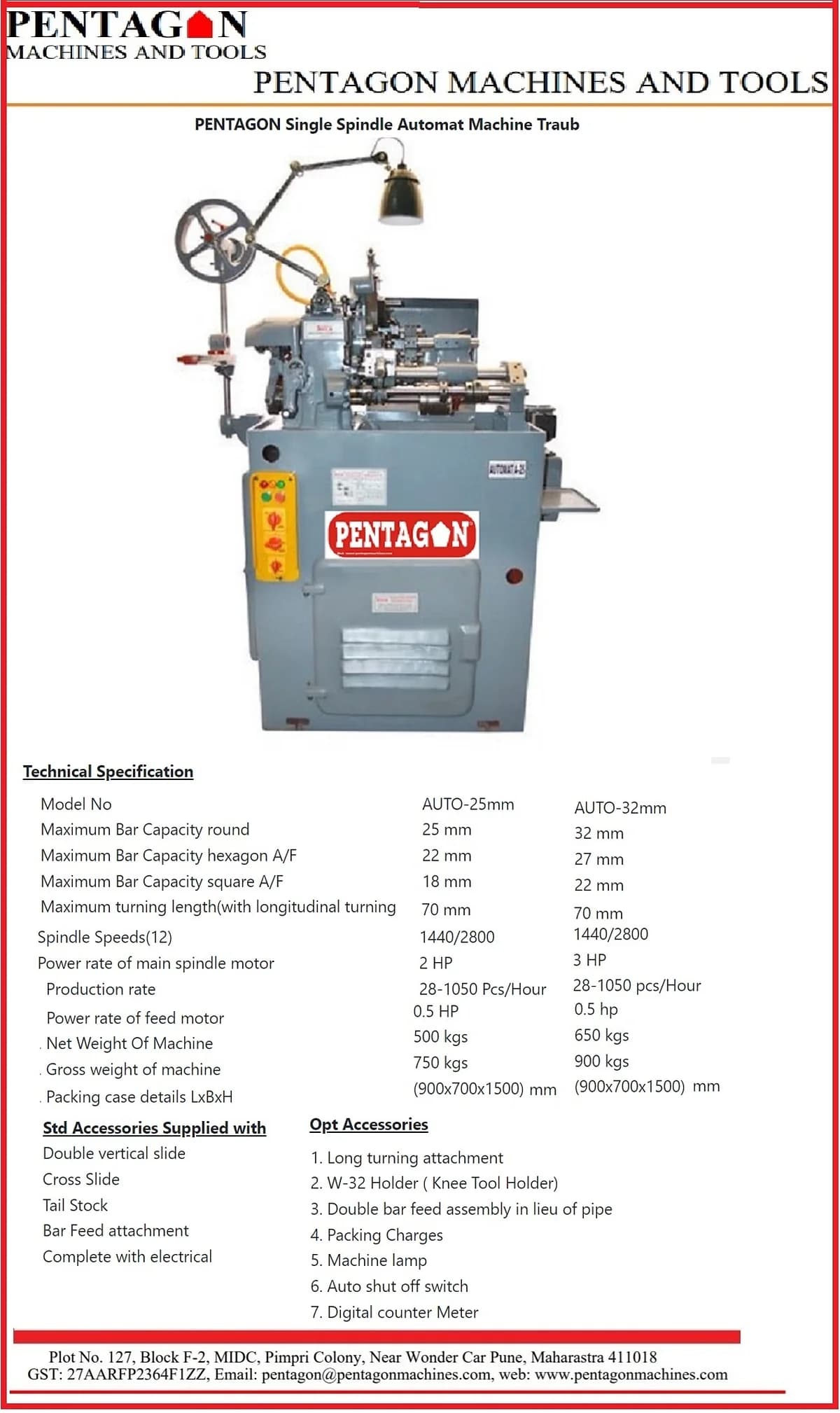

Specifications
For: PAT-25- HSN Code
- 84596990
- Machine Model
- PAT-25
- Maximum Turning Length with Longitudinal Turning Slide
- 70 mm
- Net Weight of Machine
- 500 Kgs
- Packing Case Details (LxBxH)
- (900x700x1500) mm
- Production Rate
- 28-1050 Pcs/Hour
- Maximum Tail Stock Collet Capacity (A3 Type Collet)
- 13 mm
- Stroke of Cross Slides
- 22 mm
- Maximum Bar Capacity Square (A/F)
- 18 mm
- Power Rate of Feed Motor
- 0.5 HP
- Spindle Speeds
- 1440/2800
- Power Rate of Main Spindle Motor
- 2 HP
- Maximum Bar Capacity Hexagon (A/F)
- 22 mm
- Maximum Bar Capacity (Round)
- 25 mm
- Gross Weight of Machine
- 750 Kgs
Configurations
Click a row to switch| Variant | Machine Model | Maximum Bar Capacity (Round) | Maximum Bar Capacity Square (A/F) | Maximum Turning Length with Longitudinal Turning Slide | Price |
|---|---|---|---|---|---|
| PAT-25 | PAT-25 | 25 mm | 18 mm | 70 mm | ₹1,68,000 |
| PAT-32 | PAT-32 | 32 mm | 22 mm | 70 mm | ₹2,07,000 |
| PAT-42 | PAT-42 | 42 mm | 28 mm | 100 mm | ₹5,65,000 |
Compliance & Classification
- HSN Code 84596990 for customs classification
- Meets standard industrial safety requirements
- Compliant with international trade regulations
- Suitable for global procurement and export
- Adheres to standard engineering quality norms
- Documentation supports regulatory compliance needs
- Ensures accurate tax and duty processing
Industry Applications
- Ideal for automotive component manufacturing
- Used extensively in medical device production
- Suitable for electronics manufacturing processes
- Supports high-precision machining operations
- Adaptable to various industrial machining needs
- Proven platform for diverse manufacturing sectors
- Enhances throughput in mass production lines
Build & Logistics
- Net weight of machine is 500 Kgs for stability
- Gross weight of machine is 750 Kgs for shipping
- Packing case dimensions are 900x700x1500 mm
- Robust construction ensures long-term durability
- Compact footprint suitable for various workshop layouts
- Secure packing protects equipment during transit
- Designed for easy installation and setup
Machining Capacity
- Maximum round bar capacity reaches 25 mm diameter
- Hexagon bar capacity supports up to 22 mm A/F
- Square bar capacity accommodates 18 mm A/F sizes
- Maximum turning length is 70 mm with longitudinal slide
- Cross slides provide 22 mm stroke for precision cuts
- Tail stock collet capacity handles 13 mm A3 type
- Versatile for various bar stock geometries and sizes
Performance & Power
- The PENTAGON Single Spindle Automat Traub Machine, model PAT-25
- Production rate ranges from 28 to 1050 pieces per hour
- Main spindle motor delivers 2 HP for consistent power
- Spindle speeds available at 1440 and 2800 RPM
- Feed motor rated at 0.5 HP for efficient operation
- High-speed capability ensures rapid machining cycles
- Optimized for high-volume manufacturing requirements
Optional Accessories
- Long turning attachment
- W-25 Holder ( Knee Tool Holder)
- Double bar feed assembly in lieu of pipe
- Packing Charges
- Machine lamp
- Digital counter Meter
- Parting tool 10%
- Collets - 5-16 mm
Standard Accessories
- Spindle main collect round
- Pipe length 11 Ft
- Feed Pipe
- Complete feed Gears 11 Nos
Frequently asked
What is the production capacity?
It ranges from 28 to 1050 pieces per hour.
Is it suitable for high volume?
Yes, designed for high-volume machining operations.
What is the main motor power?
The main spindle motor is 2 HP.
More questions buyers ask
What is a Single Spindle Automat Traub Machine?
It is a type of automatic lathe machine used for precision turning of components in high-volume manufacturing. It's known for its efficiency in producing small to medium-sized parts.
What are the typical applications of this machine?
These machines are widely used in the automotive, electronics, and general engineering industries for manufacturing shafts, fittings, screws, and other complex components.
What is the power requirement for the Pentagon Traub machine?
The power varies by model. The PAT-25 and PAT-32 models use a 2 HP main motor, while the larger PAT-42 model uses a 5 HP motor.
What is the production capacity?
The production rate can range from 28 to over 1200 pieces per hour, depending on the specific component and machine setup.
Is there a warranty on this machine?
Yes, all PENTAGON machines come with a manufacturer's warranty. Please contact us for specific warranty details and terms.
Do you provide installation and training?
Yes, we offer optional installation and operator training services across India. Contact our sales team for a quote.
What is the HSN code for this machine?
The HSN code for the PENTAGON Traub Machine is 84596990.
What are the payment terms?
We accept various payment methods including Cash on Delivery (COD), Cash in Advance (CID), and bank transfers. GST is applicable on all sales.
Can I get a GST invoice?
Yes, we provide a full GST invoice for all purchases, allowing you to claim input tax credit.
Do you deliver across India?
Yes, we provide pan-India delivery to all major cities and industrial areas.
Who should choose the PENTAGON PAT-25 Traub Machine?
The PAT-25 model, with its 25mm bar capacity, is ideal for businesses focusing on high-volume production of smaller precision components. It's a cost-effective solution for entering automated turning.
Who should choose the PENTAGON PAT-32 Traub Machine?
The PAT-32 offers a larger 32mm capacity, making it a versatile choice for general-purpose machine shops that handle a variety of job sizes. It strikes a great balance between capability and cost.
Who should choose the PENTAGON PAT-42 Traub Machine?
With a 42mm bar capacity and a powerful 5 HP motor, the PAT-42 is designed for heavy-duty applications and manufacturing larger components. It is the best choice for demanding, high-output industrial environments.
What is the main difference between the PAT-25, PAT-32, and PAT-42 models?
The primary differences are the maximum bar capacity (25mm, 32mm, and 42mm respectively) and the main motor power. As the capacity increases, so does the machine's size, weight, and power, allowing it to handle larger and more complex jobs.
How does the bar capacity differ across the variants?
The model number directly corresponds to the maximum round bar capacity in millimeters. The PAT-25 handles up to 25mm, the PAT-32 up to 32mm, and the PAT-42 up to 42mm.
Which model is best for high-volume production of small parts?
The PAT-25 is the most efficient and cost-effective model for dedicated high-volume production of parts under 25mm in diameter.
