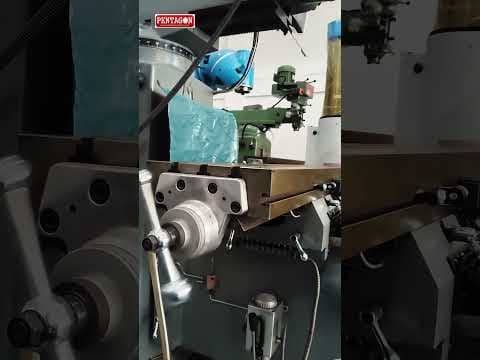

PENTAGON Vertical RAM Turret Milling table Model M6T size 1470×320 mm
Robust heavy-duty machining solutions are delivered by the M6T Vertical RAM Turret Milling Machine. Featuring a 1470×320 mm table and 5 HP motor, it manages substantial loads efficiently. • 610 mm ram travel and 127 mm quill travel offer flexibility • 1020 mm longitudinal travel accommodates long workpieces • 45-5440 rpm speed range suits various cutting operations • 1750 Kgs weight ensures stability during precision milling
Specifications
For: M6T size 1470×320 mm- Machine Model
- M6T
- Table Size
- 1470×320 mm
- Longitudinal Travel of Table
- 1020 mm
- Vertical Travel of Table
- 425 mm
- Spindle Nose to Table
- 510 mm
- Ram Travel
- 610 mm
- Auto Quill Feeds per Revolution
- 0.40/0.08/0.15 mm/rev
- Cross Travel of Table
- 430 mm
- Head Swivel (F x B)
- Fixed
- Quill Travel
- 127 mm
- Spindle Nose Taper
- ISO40/Quill dia 104 mm
- Brake Mounting Type
- Side
- Spindle Speed
- 45-5440 rpm(60Hz)
- Steps of Speeds
- 16 Steps
- Spindle Motor
- 5 HP (Double Speed)/415V/50 or 60Hz
- Z-Axis Guideways
- SquareType
- Head Swivel (L x R)
- 90°
- Max Load on Table
- 390 Kgs
- Milling Head Type
- Square head side brake
- Cross Guideways
- Square Type
- Weight of the Machine (Approx.)
- 1750 Kgs
Operational Efficiency & Control Features
- Spindle speeds range from 45 to 5440 rpm to match diverse material requirements
- Multiple auto quill feed rates streamline repetitive drilling and tapping operations
- Direct digital or manual controls offer operators precise workpiece positioning and depth control
- High-torque spindle motor maintains consistent power delivery during aggressive material removal
- Quick-change tooling interface reduces setup time between different machining jobs
- Ergonomic operator interface minimizes fatigue during extended production shifts
Robust Construction & Long-Term Reliability
- Heavy-duty cast iron base absorbs vibration and maintains alignment under heavy cuts
- Hardened and ground guideways resist wear for sustained precision over extended service life
- Sealed lubrication systems protect critical moving components from metal chips and coolant
- Modular head design allows straightforward maintenance and quick replacement of wear parts
- Engineered for continuous shop floor operation with minimal downtime and consistent output
- Corrosion-resistant finishes protect structural integrity in demanding industrial environments
Precision Machining & Versatile Applications
- Ideal for heavy-duty face milling, shoulder cutting, and angular surface finishing
- Supports precision tool and die making for aerospace and automotive component production
- Suitable for mold manufacturing requiring accurate cavity and core machining
- Effective for general engineering workshops handling diverse batch production runs
- Handles large workpiece loads with stable table support and controlled feed rates
- Adapts to custom fixture setups for specialized industrial machining requirements
Optional Accessories
- For 3 axis DRO set with suitable size of linear scale
- Reduction sleeve ISO40-MT3
- Reduction sleeve ISO40-MT2
- X axis table auto power feeder 110V type
- Y axis table auto power feeder 110V type
- H-V Rotary table
- Semi Universal dividing head with tail stock soft jaws Indexing plates
- Splash Tray/Chip Tray
- Integrated type keyless drill chuck with intact suitable arbor
- Micro boring head F-12 or F-18 with suitable Shank
- Mechanical Edge Finder/Edge Sensor
- Boring bar dia 18 mm set of 12 pcs
- keyless drill chuck with intact suitable arbor
- Mechanical Gear box Power feeder 380V
Standard Accessories
- DRO 2 Axis with suitable linear scales fitted in machine
- Coolant Pump with fitting
- Machine Lamp
- Rear and front bellow cover set
- Suitable draw bar set
- Central Lubrication unit
- Electrical cabinet with 110/220 V output
- Tool Box with essential tools
- Operation manual with machine test certificate
- Swivel base Acculock type machine vice 150 mm jaw opening
- Clamping kit M12 Type 58 Pcs set
- Collet set ER40 type 10/11 pcs set
- Z axis Rapid Motor fitted in Machine/Optional
Core Design & Operational Capabilities
- The Vertical RAM Turret Milling Table Model M6T establishes the baseline design for this series
- Precision square-type guideways on cross and Z axes ensure stable cutting performance
- Reference configurations feature a 1470×320 mm table to illustrate standard capacity ranges
- Fixed and swivel head options provide adaptability for complex machining operations
- Standard ISO40 spindle taper ensures broad tooling compatibility across the series
- Robust spindle nose geometry supports secure tool retention and consistent runout control
Frequently asked
Can this machine handle both light finishing and heavy roughing operations?
Yes, the wide speed range and robust guideway system support both precision finishing and heavy material removal.
How does the vertical RAM turret design improve workflow efficiency?
The turret layout allows rapid tool indexing and secure positioning, significantly reducing setup and changeover times.
What maintenance practices ensure long-term accuracy and performance?
Regular lubrication of square guideways, periodic spindle runout checks, and cleaning of chip guards maintain optimal operation.
More questions buyers ask
What is a vertical RAM turret milling machine used for?
It is used for precision machining tasks including milling, drilling, boring, and contouring in industries like automotive, aerospace, and general fabrication.
What are the key advantages of the M6T turret design?
The turret head rotates 360 degrees and the ram slides back and forth, allowing for machining complex angles and reaching across larger workpieces.
What is the table size of the Pentagon M6T milling machine?
The M6T model features a robust 1470 x 320 mm table, suitable for handling large and heavy components.
Does this machine support heavy-duty operations?
Yes, with a 5 HP double-speed motor and hardened square guideways, it is designed for both precision finishing and heavy material removal.
What is the spindle speed range of this machine?
The machine offers 16 steps of speed ranging from 45 to 5440 rpm, providing versatility for various materials and cutting tools.
What is the maximum load capacity of the table?
The table is engineered to support a maximum load of 390 kg.
What type of spindle taper does the M6T use?
It uses an ISO40 spindle taper, which is a standard for broad tooling compatibility.
Is this machine suitable for tool and die making?
Yes, its high-precision 3-axis movement and rigid construction make it ideal for mold manufacturing and tool and die applications.
What maintenance is required for this milling machine?
Regular lubrication of square guideways, periodic spindle runout checks, and keeping chip guards clean are essential for long-term accuracy.
Does it come with a warranty and support?
Pentagon provides reliable after-sales support and machine test certificates with their equipment.
Who should choose the Pentagon M6T 1470x320mm model?
This model is best suited for professional workshops, tool rooms, and manufacturing units that require a versatile, heavy-duty machine for large-scale precision metalworking.
How does the M6T compare to smaller turret mills?
The M6T offers a larger table size (1470x320mm) and higher load capacity (390kg) compared to standard 1270x254mm models, making it superior for larger workpieces.
Is the M6T better for finishing or roughing?
It is designed for both; the wide speed range allows for aggressive roughing, while the high-precision guideways ensure fine surface finishing.
