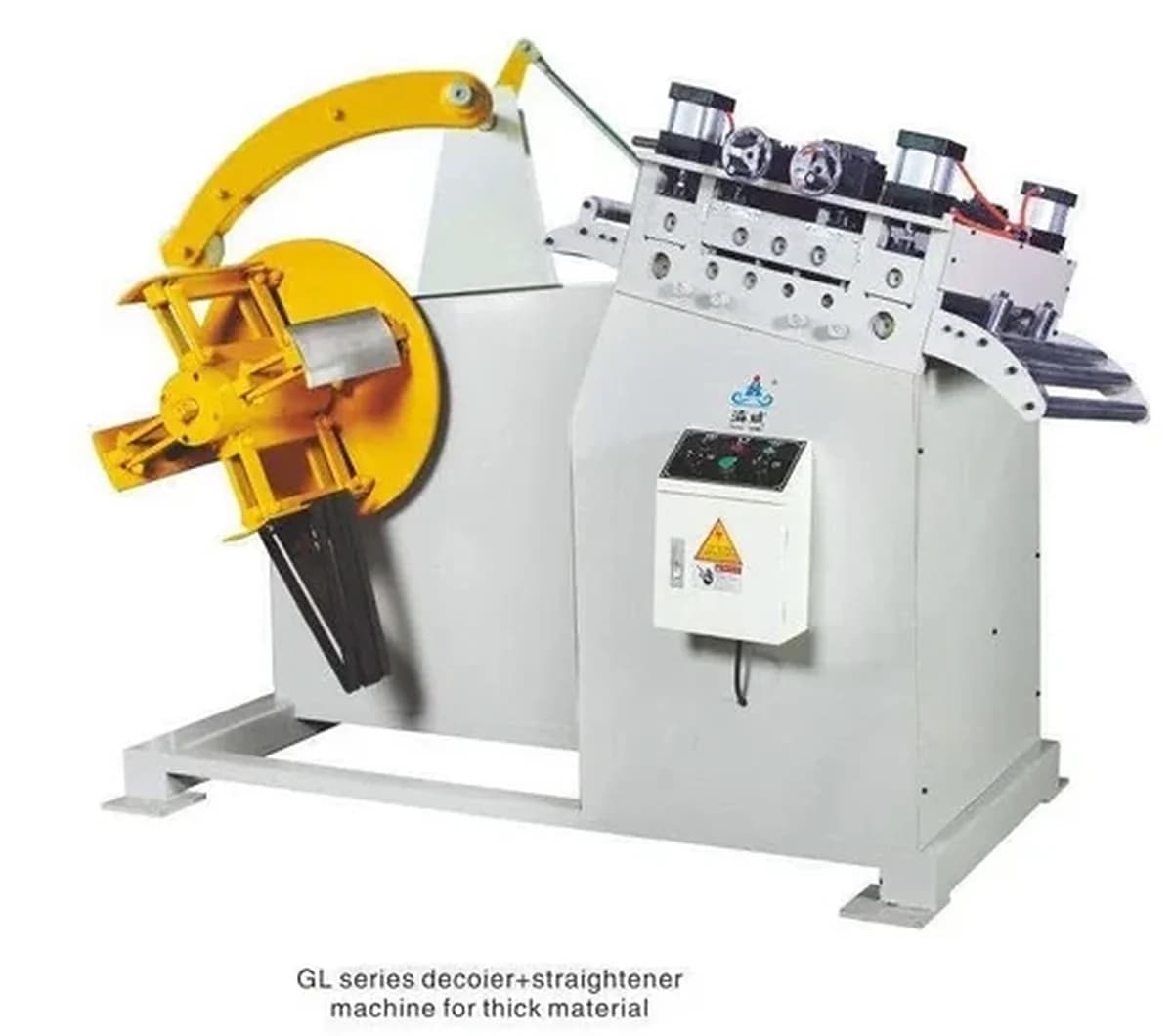

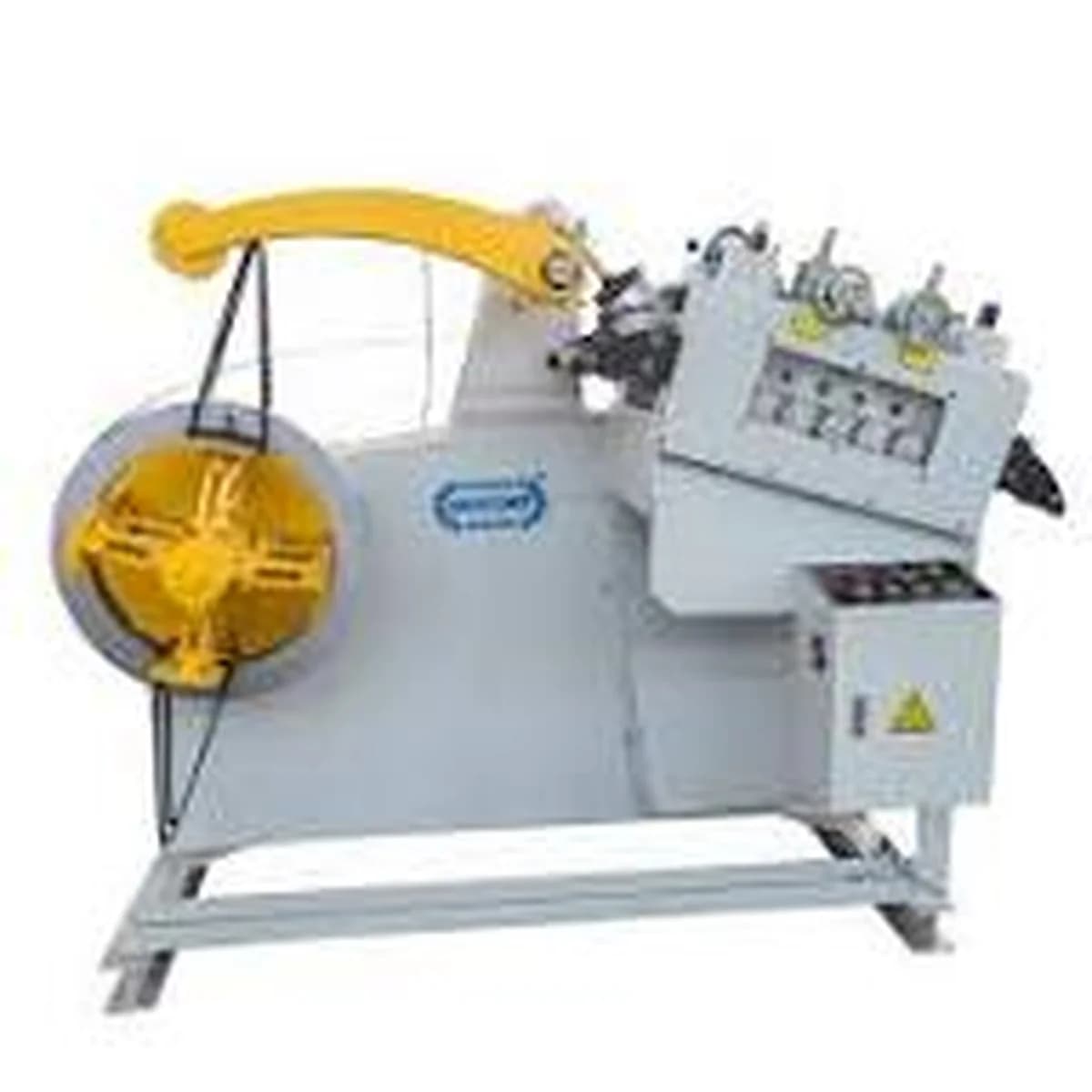

Precision 2 in 1 Decoiler Straightener for Coil Feeding Applications — S-A / DCE-I
This integrated decoiler and straightener unit removes bends and coil set from metal strips before processing. Precision rollers apply controlled pressure for flat, stress-free output suitable for sheet metal lines. • HCHCR Steel rollers ensure durability • Supports coil widths from 150 mm to 1000 mm • High precision leveling performance • Multiple motor power options available
Specifications
For: S-A / DCE-I- Coil Width (MM)
- 150
- Material Thickness (MM)
- 0.35 - 1.50
- Motor Power
- 1 HP
- Leveling Performance
- High precision / Perfect leveling output
- Roller Material
- HCHCR Steel
- Coil ID (MM)
- 350-550
- Coil OD (MM)
- 1000
- Coil Weight (KG)
- 200
Configurations
Click a row to switch| Variant | Coil Width (MM) | Coil Weight (KG) | Coil OD (MM) | Coil ID (MM) | Price |
|---|---|---|---|---|---|
| S-A / DCE-I | 150 | 200 | 1000 | 350-550 | ₹4,67,042 |
| S-A / DCE-II | 200 | 500 | 1000 | 350-550 | ₹5,56,640 |
| S-A / DCE-III | 300 | 1000 | 1200 | 350-550 | ₹6,32,800 |
| S-A / DCE-IV | 400 | 3000 | 1200 | 450-550 | ₹7,52,640 |
| S-A / DCE-V | 200 | 500 | 1000 | 350-550 | ₹5,57,760 |
| S-A / DCE-VI | 300 | 500 | 1200 | 450-550 | ₹6,45,118 |
| S-A / DCE-VII | 400 | 2000 | 1200 | 450-550 | ₹7,25,760 |
| S-A / DCE-VIII | 500 | 1500 | 1200 | 450-550 | ₹7,97,440 |
| S-A / DCE-IX | 600 | 2500 | 1200 | 450-550 | ₹9,35,200 |
| S-A / DCE-X | 200 | 1000 | 1200 | 450-550 | ₹6,47,360 |
| S-A / DCE-XI | 300 | 2000 | 1200 | 450-550 | ₹7,20,160 |
| S-A / DCE-XII | 400 | 2000 | 1200 | 450-550 | ₹8,12,000 |
| S-A / DCE-XIII | 500 | 3000 | 1400 | 450-550 | ₹10,84,160 |
| S-A / DCE-XIV | 600 | 5000 | 1400 | 450-550 | ₹11,81,599 |
| S-A / DCE-XV | 800 | 5000 | 1400 | 450-550 | ₹15,40,000 |
| S-A / DCE-XVI | 1000 | 7500 | 1400 | 450-550 | ₹20,09,400 |
Common Questions
Q: What is the leveling performance standard? A: High precision / Perfect leveling output Q: What coil dimensions are supported? A: Coil ID 350–550 mm, OD 1000 mm, Weight 200 KG Q: What material thickness range is compatible? A: Material Thickness 0.35–1.50 mm
Durability & Maintenance
- Built for long-term reliability in harsh environments
- Requires minimal maintenance for continuous use
- Robust frame withstands heavy vibration loads
- Easy access points simplify routine inspections
- Designed to reduce downtime during peak shifts
Operational Efficiency & Integration
- Integrates seamlessly with automated production lines
- Reduces manual handling time significantly
- Enhances overall throughput for metal fabrication
- Simplifies setup for different coil configurations
- Lowers operational costs through energy efficiency
Material Processing Capabilities
- Processes Material Thickness from 0.35–1.50 mm
- Equipped with 1 HP Motor Power for efficiency
- Suitable for various sheet metal feeding applications
- Optimized for continuous industrial operation
- Maintains speed during high-volume production runs
Coil Handling Specifications
- Supports Coil ID range of 350–550 mm
- Accommodates Coil OD up to 1000 mm diameter
- Handles Coil Weight capacity of 200 KG
- Manages Coil Width of 150 mm effectively
- Designed for stable feeding of standard coils
Precision Leveling & Roller Quality
- Precision 2 in 1 Decoiler Straightener for Coil Feeding Applications
- Utilizes HCHCR Steel for durable roller construction
- Delivers High precision / Perfect leveling output
- Ensures consistent flatness for downstream processes
- Minimizes material distortion during straightening
- Reduces waste through accurate coil processing
More questions buyers ask
What is the Samay-Asia Precision 2 in 1 Decoiler Straightener?
It is an integrated decoiler and straightener unit designed to remove bends and coil set from metal strips before processing, ensuring flat, stress-free output for sheet metal lines.
What coil widths are supported by this machine?
The machine supports a wide range of coil widths from 150 mm up to 1000 mm, depending on the specific variant chosen.
What is the material thickness range compatible with this decoiler straightener?
It can process material thicknesses ranging from 0.35 mm to 4.50 mm, varying by model.
What type of rollers are used in this machine?
All variants are equipped with highly durable HCHCR Steel rollers for long-term reliability.
What are the motor power options available?
Motor power options range from 1 HP for lighter applications up to 10 HP for heavy-duty industrial use.
Is this machine suitable for heavy vibration loads?
Yes, it features a robust frame designed to withstand heavy vibration loads in harsh industrial environments.
How does this machine improve operational efficiency?
It integrates seamlessly with automated production lines, reduces manual handling time, and enhances overall throughput for metal fabrication.
What is the leveling performance standard of this machine?
It delivers high precision and perfect leveling output for optimal downstream processing.
Does it require high maintenance?
No, it is designed for minimal maintenance with easy access points to simplify routine inspections.
Can it be integrated with automated production lines?
Yes, it is specifically designed to integrate seamlessly with automated production lines to improve factory usable space and efficiency.
Who should choose the S-A / DCE-I variant?
The S-A / DCE-I is ideal for light-duty applications, supporting up to 150 mm coil width and 200 KG weight with a 1 HP motor.
Who should choose the S-A / DCE-II variant?
Choose the S-A / DCE-II for processing 200 mm coil widths and up to 500 KG coil weights, powered by a 2 HP motor.
Who should choose the S-A / DCE-III variant?
The S-A / DCE-III is suitable for 300 mm coil widths and 1000 KG weights, featuring a 2 HP motor.
Who should choose the S-A / DCE-IV variant?
Opt for the S-A / DCE-IV if you need to handle 400 mm coil widths and up to 3000 KG weights with a 3 HP motor.
Who should choose the S-A / DCE-V variant?
The S-A / DCE-V is perfect for 200 mm coil widths and 500 KG weights, utilizing a 2 HP motor for consistent operation.
Who should choose the S-A / DCE-VI variant?
Choose the S-A / DCE-VI for 300 mm coil widths and 500 KG weights, powered by a 3 HP motor.
Who should choose the S-A / DCE-VII variant?
The S-A / DCE-VII is built for 400 mm coil widths and 2000 KG weights, featuring a robust 5 HP motor.
Who should choose the S-A / DCE-VIII variant?
Opt for the S-A / DCE-VIII to support 500 mm coil widths and 1500 KG weights with a 5 HP motor.
Who should choose the S-A / DCE-IX variant?
The S-A / DCE-IX is ideal for 600 mm coil widths and 2500 KG weights, utilizing a powerful 7.5 HP motor.
Who should choose the S-A / DCE-X variant?
Choose the S-A / DCE-X for 200 mm coil widths and 1000 KG weights, powered by a 3 HP motor.
Who should choose the S-A / DCE-XI variant?
The S-A / DCE-XI is suitable for 300 mm coil widths and 2000 KG weights, featuring a 3 HP motor.
Who should choose the S-A / DCE-XII variant?
Opt for the S-A / DCE-XII to handle 400 mm coil widths and 2000 KG weights with a 5 HP motor.
Who should choose the S-A / DCE-XIII variant?
The S-A / DCE-XIII is built for 500 mm coil widths and 3000 KG weights, utilizing a 7.5 HP motor.
Who should choose the S-A / DCE-XIV variant?
Choose the S-A / DCE-XIV for 600 mm coil widths and 5000 KG weights, powered by a 7.5 HP motor.
Who should choose the S-A / DCE-XV variant?
The S-A / DCE-XV is a heavy-duty variant for 800 mm coil widths and 5000 KG weights, featuring a 10 HP motor.
Who should choose the S-A / DCE-XVI variant?
The S-A / DCE-XVI is the most robust option, supporting 1000 mm coil widths and 7500 KG weights with a 10 HP motor.
What is the difference between the S-A / DCE-I and S-A / DCE-XVI variants?
The DCE-I is the entry-level model for 150mm/200KG coils with a 1HP motor, while the DCE-XVI is the top-tier model handling massive 1000mm/7500KG coils with a 10HP motor.
How does coil weight capacity vary across the models?
Coil weight capacity starts at 200 KG for the lightest model and scales up to 7500 KG for the heaviest industrial applications.
Which variant offers the highest motor power?
The S-A / DCE-XV and S-A / DCE-XVI variants offer the highest motor power at 10 HP, designed for the most demanding sheet metal feeding tasks.
More like this
Full description
This integrated decoiler and straightener unit removes bends and coil set from metal strips before processing. Precision rollers apply controlled pressure for flat, stress-free output suitable for sheet metal lines.
Read more ↓
• HCHCR Steel rollers ensure durability • Supports coil widths from 150 mm to 1000 mm • High precision leveling performance • Multiple motor power options available
