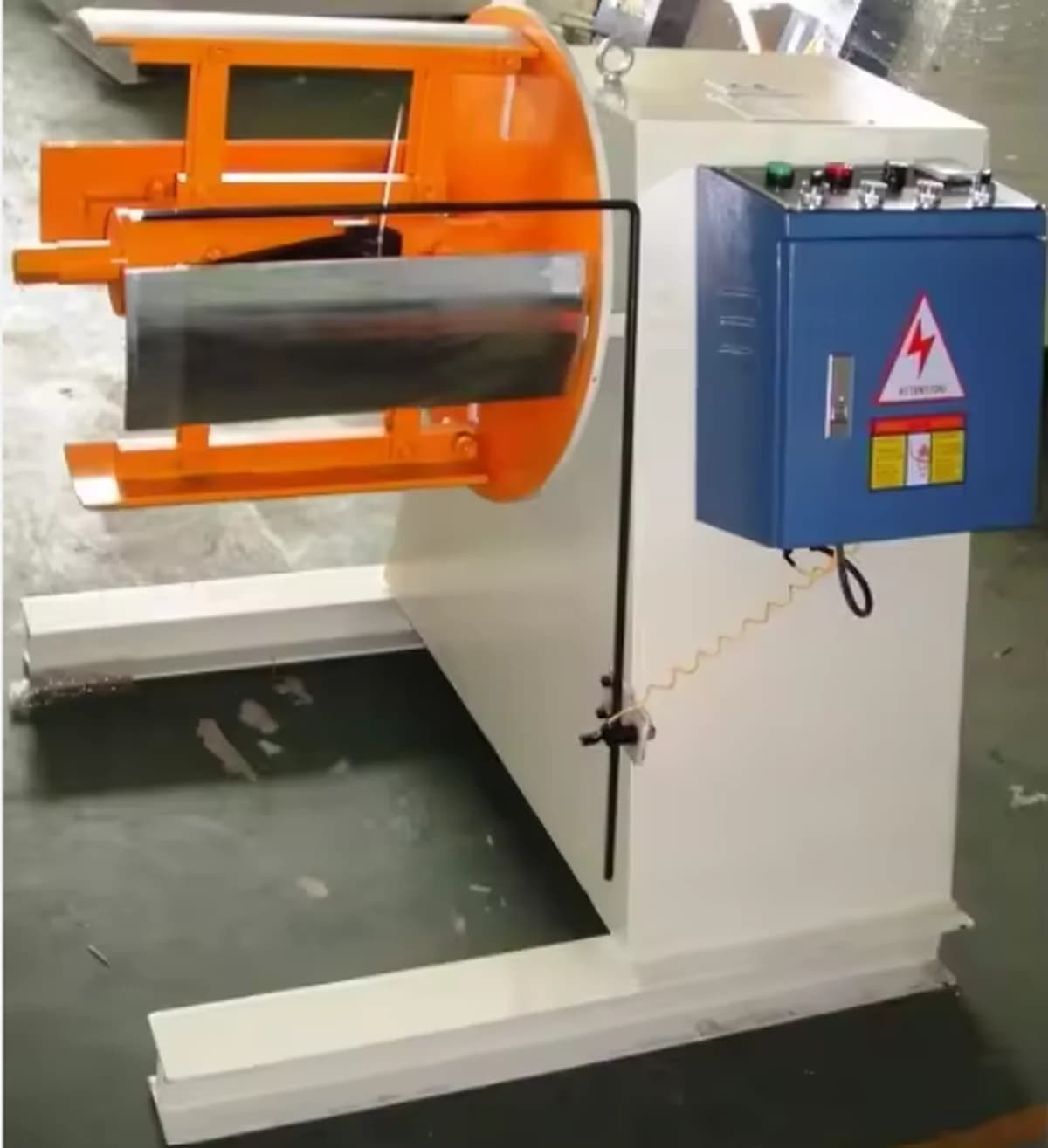

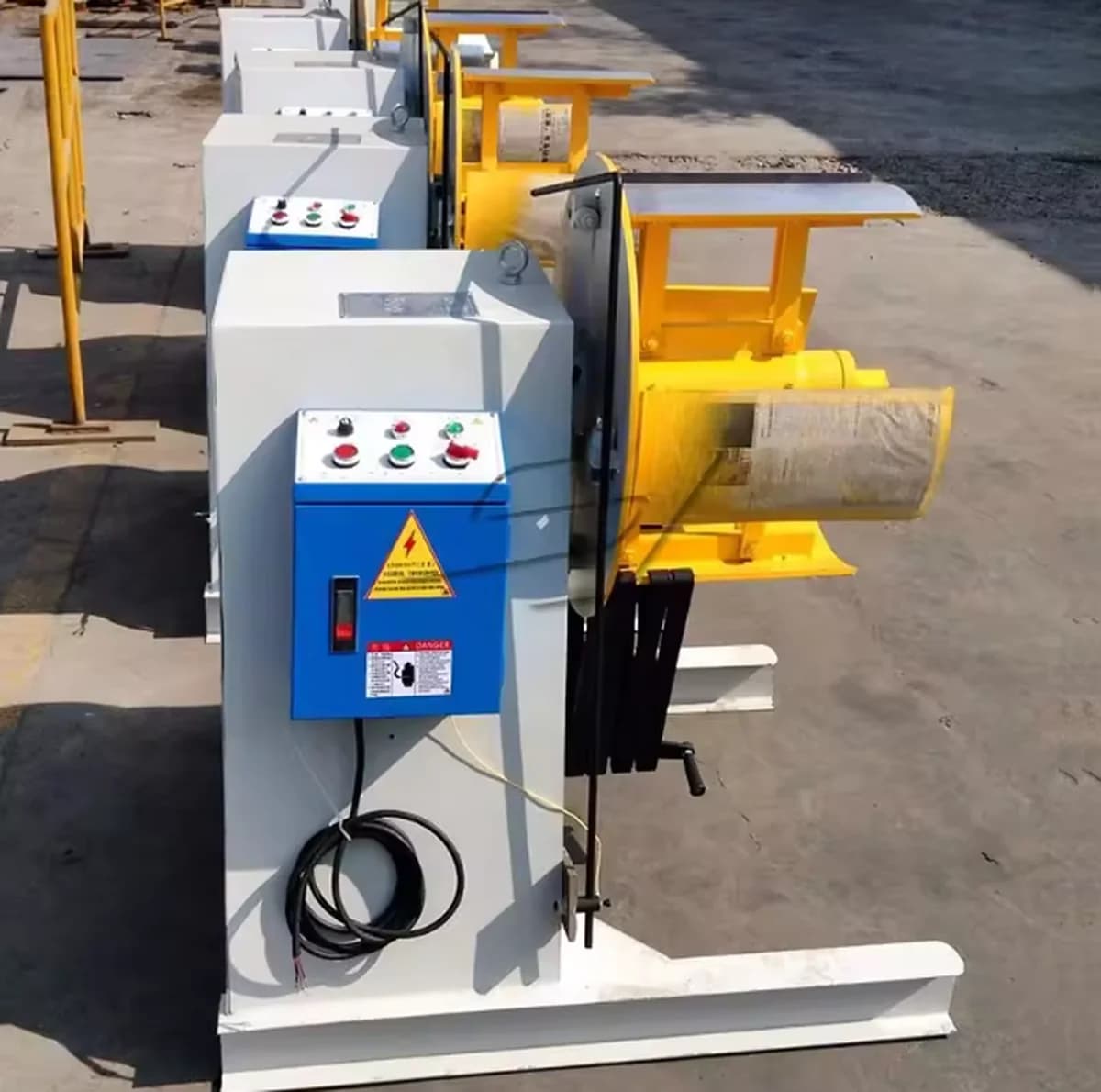

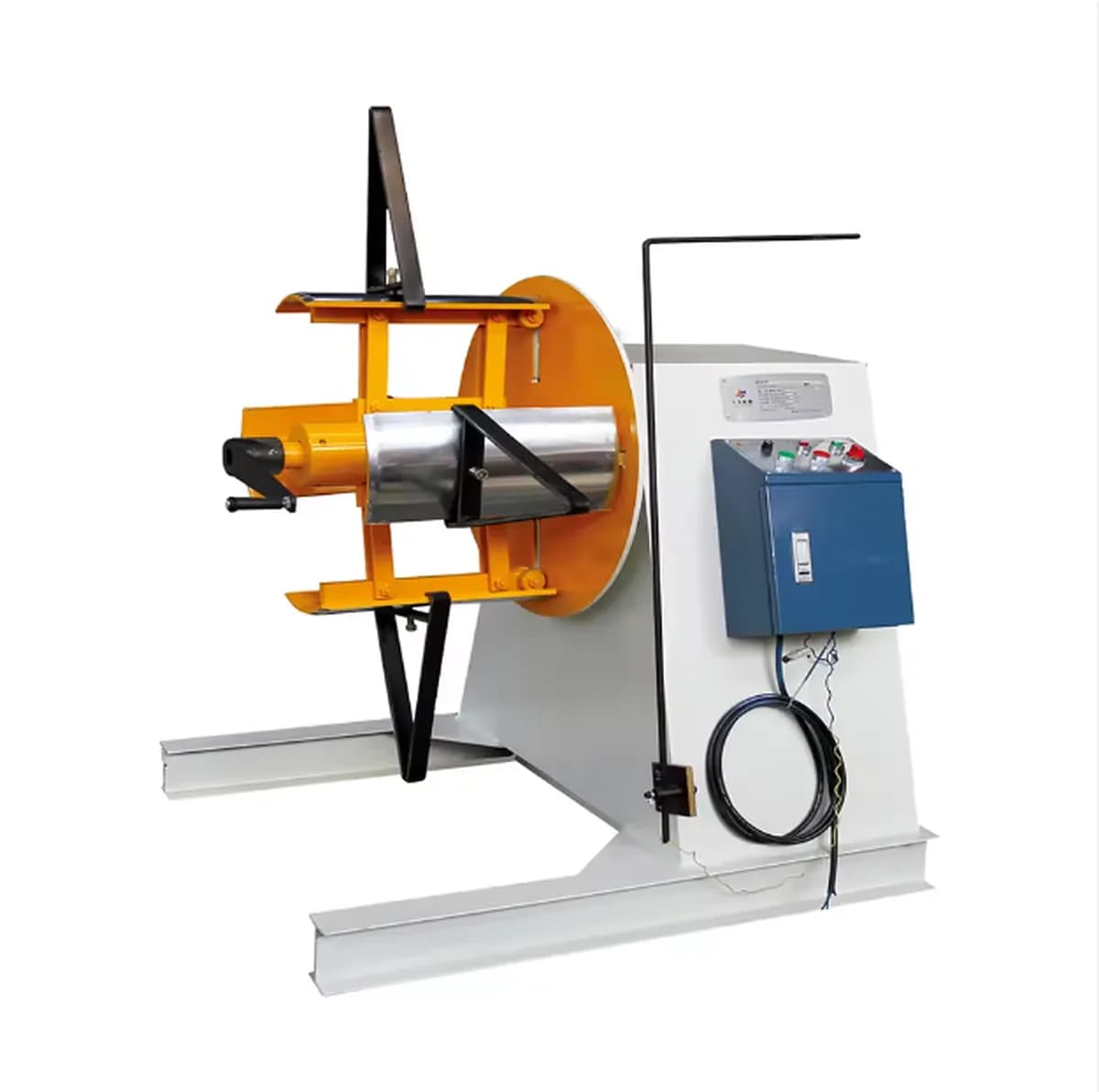

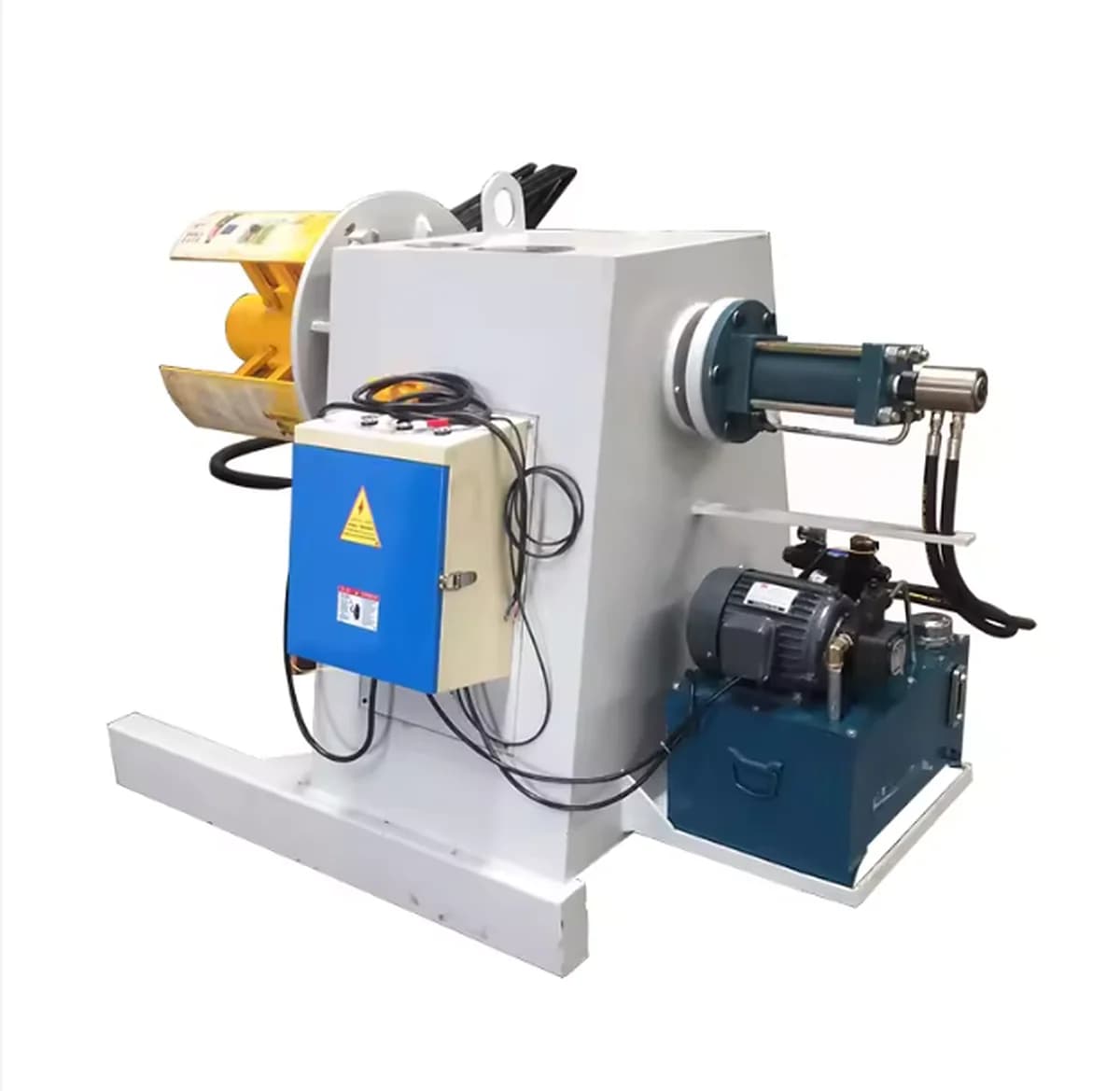

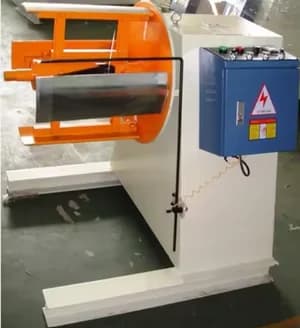

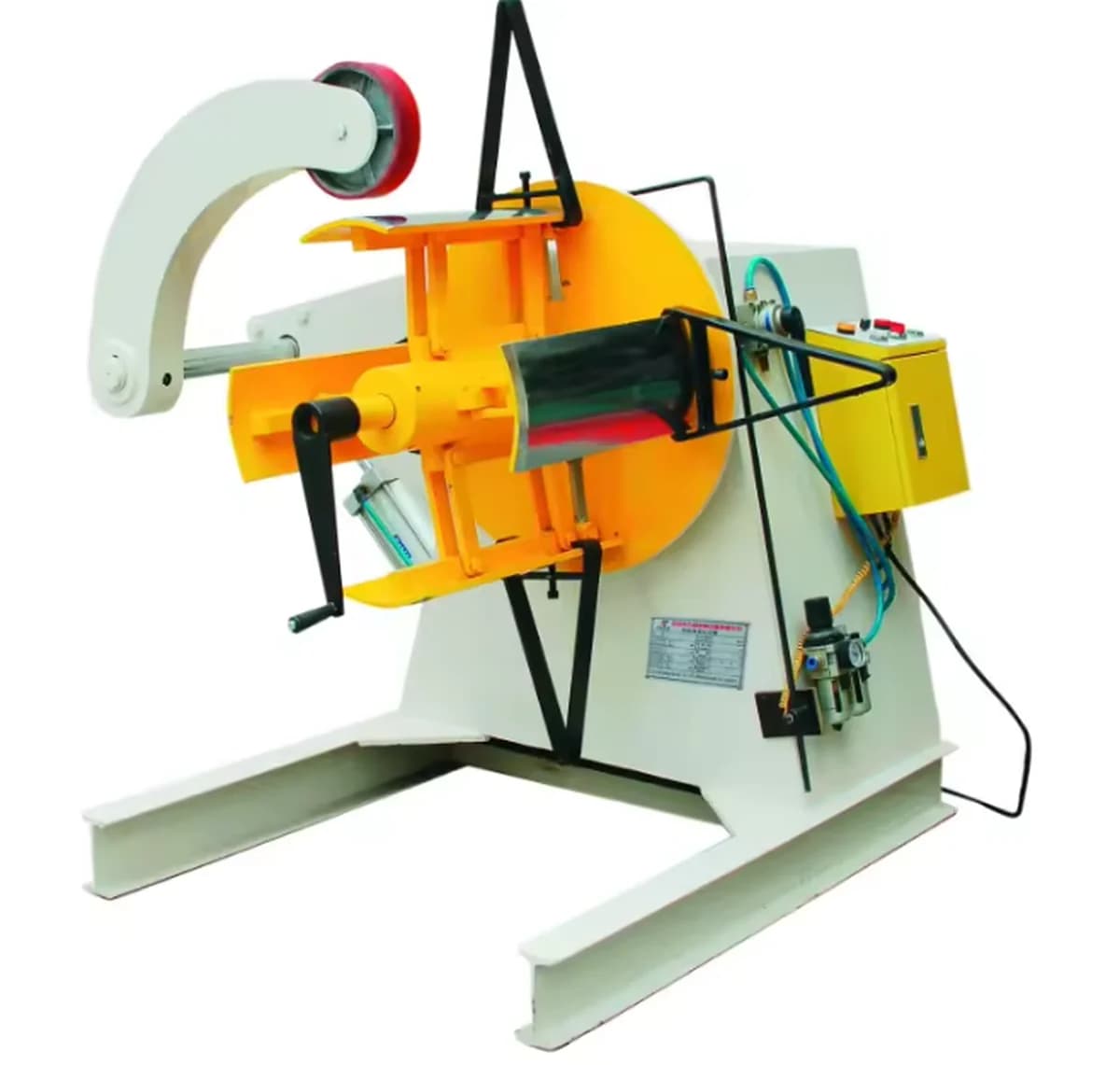

Motorized Uncoiler-Decoiler Machine for Coil Feeding — S-A / DE-I
This automated coil handling system delivers controlled unwinding for efficient coil feeding in continuous production lines. The motorized uncoiler uses a motor-driven mandrel to maintain consistent tension while feeding downstream equipment like straighteners or press lines. • Ensures smooth material feeding with adjustable tension control • Compatible with various coil weights and widths for flexibility • Enhances safety and productivity in automated manufacturing setups
Specifications
For: S-A / DE-I- Material Width (MM)
- 200
- Material Coil ID
- 350-500
- Material Coil OD
- 1000
- Material Coil Weight
- 200
Configurations
Click a row to switch| Variant | Material Coil ID | Material Coil OD | Material Coil Weight | Material Width (MM) | Price |
|---|---|---|---|---|---|
| S-A / DE-I | 350-500 | 1000 | 200 | 200 | ₹69,328 |
| S-A / DE-II | 375-525 | 1200 | 500 | 300 | ₹79,856 |
| S-A / DE-III | 450-550 | 1200 | 1000 | 300 | ₹1,11,104 |
| S-A / DE-IV | 450-550 | 1200 | 1500 | 400 | ₹1,59,039 |
| S-A / DE-V | 450-550 | 1200 | 2000 | 600 | ₹2,63,200 |
| S-A / DE-VI | 475-575 | 1400 | 3000 | 800 | ₹4,44,638 |
| S-A / DE-VII | 475-575 | 1500 | 5000 | 1000 | ₹6,83,200 |
| S-A / DE-VIII | 475-575 | 1500 | 10000 | 1500 | ₹15,17,600 |
Safety & Compliance Standards
- Meets international industrial safety standards and guidelines
- Emergency stop buttons ensure immediate shutdown capability
- Guarding systems protect operators from moving parts
- Electrical components comply with CE and ISO safety rules
- Designed to significantly reduce workplace injury risks
- Promotes a safer working environment for all staff
- Regular maintenance ensures continued safety compliance
Production Line Integration
- Designed to interface seamlessly with standard press lines
- Adaptable to various strip material widths and thicknesses
- Synchronizes effectively with feeder and straightener speeds
- Modular design allows for future production line upgrades
- Standard mounting options simplify on-site installation
- Supports continuous workflow for metal processing needs
- Improves productivity and safety in continuous production lines
Industrial Durability & Construction
- Heavy-duty steel frame ensures stability under heavy loads
- Precision bearings enable smooth rotational movement
- Corrosion-resistant finish for harsh industrial environments
- Robust design withstands high-frequency usage demands
- Easy access points facilitate routine inspection and care
- Built to maintain performance over extended operational hours
- Engineered for safety and long-term reliability
Motorized Feeding Precision
- Uses a motor-driven mandrel for consistent unwinding
- Provides smooth, tension-controlled feeding of strip material
- Reduces manual intervention during production cycles
- Maintains material integrity during high-speed operations
- Compatible with various metal strip material types
- Enhances overall productivity in metal processing workflows
- Minimizes downtime through reliable motorized operation
Automated Coil Handling System
- Motorized Uncoiler-Decoiler Machine acts as an automated coil handling system
- Designed to hold and unwind metal coils in a controlled manner
- Handles strip material feeding into downstream machines
- Supports straighteners, feeders, or press lines integration
- Typical configurations include coil weights up to 200kg and OD 1000mm
- Accommodates material widths and coil IDs like 350-500mm
- Ensures smooth operation in continuous production lines
More questions buyers ask
What is the Samay-Asia Motorized Uncoiler-Decoiler Machine used for?
It is an automated coil handling system designed for controlled unwinding and efficient coil feeding in continuous production lines.
How does the motorized uncoiler maintain tension?
It uses a motor-driven mandrel to maintain consistent tension while feeding downstream equipment like straighteners or press lines.
What safety features are included in this decoiler?
It features emergency stop buttons, guarding systems to protect operators, and electrical components that comply with CE and ISO safety rules.
Can this machine be integrated into existing press lines?
Yes, it is designed to interface seamlessly with standard press lines and synchronizes effectively with feeder and straightener speeds.
What materials can the Samay-Asia uncoiler handle?
It is compatible with various metal strip materials, including MS, SS, aluminium, and copper strips.
Is the machine durable enough for harsh industrial environments?
Absolutely. It features a heavy-duty steel frame, precision bearings, and a corrosion-resistant finish to withstand high-frequency usage.
Does the machine require manual intervention during operation?
The motorized feeding precision significantly reduces the need for manual intervention during production cycles.
What is the power source for this decoiler?
The machine operates on electricity, typically requiring a 3-phase power supply depending on the model.
Are there standard mounting options available?
Yes, the modular design includes standard mounting options for easy installation and future production line upgrades.
Does the machine come with a warranty?
Yes, it comes with a standard manufacturer's warranty. Please check the specific terms at the time of purchase.
Who should choose the 200 kg capacity variant?
The 200 kg variant (SAMAY-200KG-2814) is ideal for light-duty applications and small-scale automated press lines handling narrow strips up to 200 mm wide.
Who should choose the 500 kg capacity variant?
The 500 kg variant (SAMAY-500KG-2819) is perfect for medium-light coil feeding, supporting up to 300 mm width for standard sheet metal operations.
Who should choose the 1000 kg capacity variant?
The 1000 kg variant (SAMAY-1000KG-2820) is suited for continuous production lines requiring reliable tension control for coils up to 300 mm wide.
Who should choose the 1500 kg capacity variant?
The 1500 kg variant (SAMAY-1500KG-2821) is recommended for medium-duty industrial applications accommodating coils up to 400 mm wide.
Who should choose the 2000 kg capacity variant?
The 2000 kg variant (SAMAY-2000KG-2822) is a robust choice for demanding manufacturing setups handling heavy coils up to 600 mm wide.
Who should choose the 3000 kg capacity variant?
The 3000 kg variant (SAMAY-3000KG-2823) is built for large-scale press lines requiring heavy-duty coil handling up to 800 mm wide.
Who should choose the 5000 kg capacity variant?
The 5000 kg variant (SAMAY-5000KG-2824) is designed for major industrial operations needing consistent feeding for coils up to 1000 mm wide.
Who should choose the 10,000 kg capacity variant?
The 10,000 kg variant (SAMAY-10000KG-2825) is the ultimate heavy-duty solution for maximum production efficiency, handling massive coils up to 1500 mm wide.
What is the difference between the 500 kg and 1000 kg variants?
While both handle material widths up to 300 mm, the 1000 kg variant supports double the coil weight and has a larger coil ID range (450-550 mm vs 375-525 mm).
How do the 3000 kg and 5000 kg models compare?
The 5000 kg model supports wider materials (up to 1000 mm vs 800 mm) and heavier coils, making it better suited for larger industrial applications.
Which variant offers the widest material compatibility?
The 10,000 kg variant offers the widest material compatibility, handling strip widths up to 1500 mm, compared to the 200 mm width of the entry-level 200 kg model.
