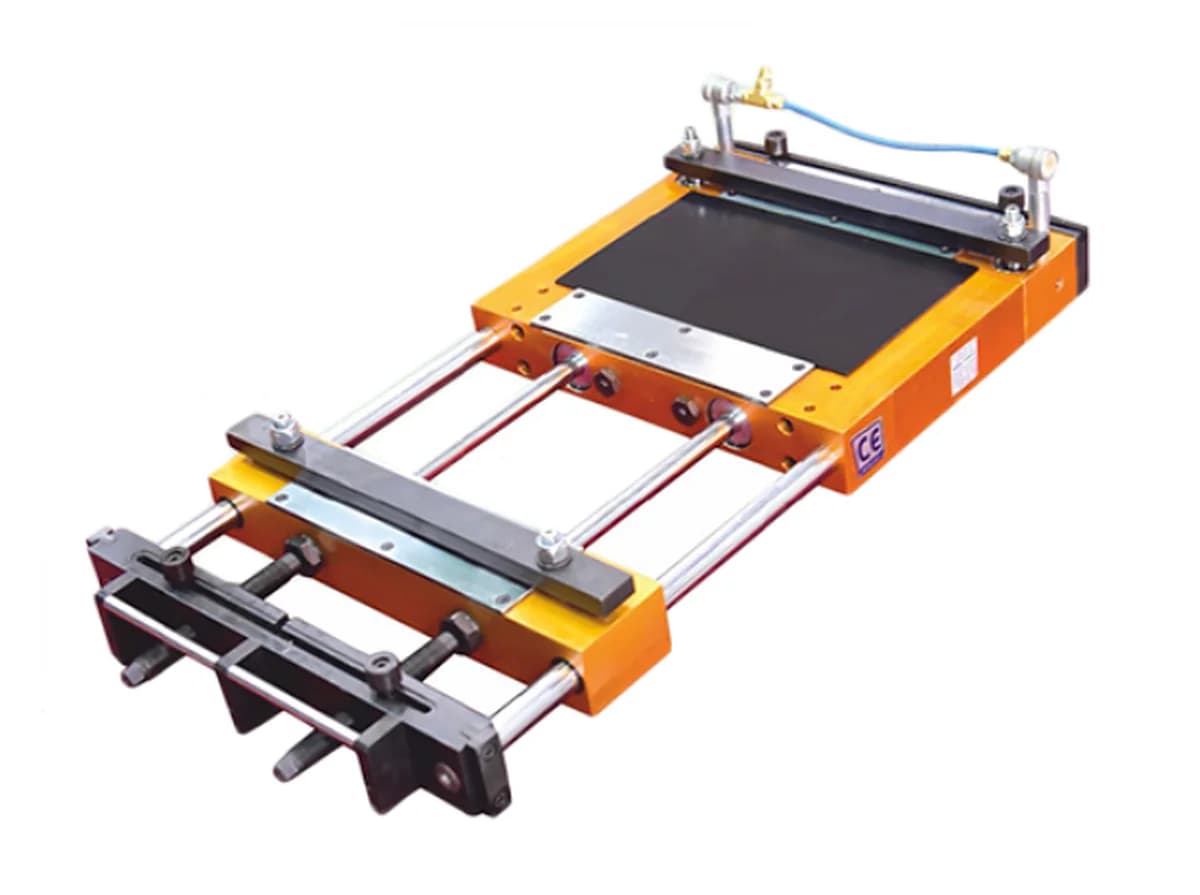

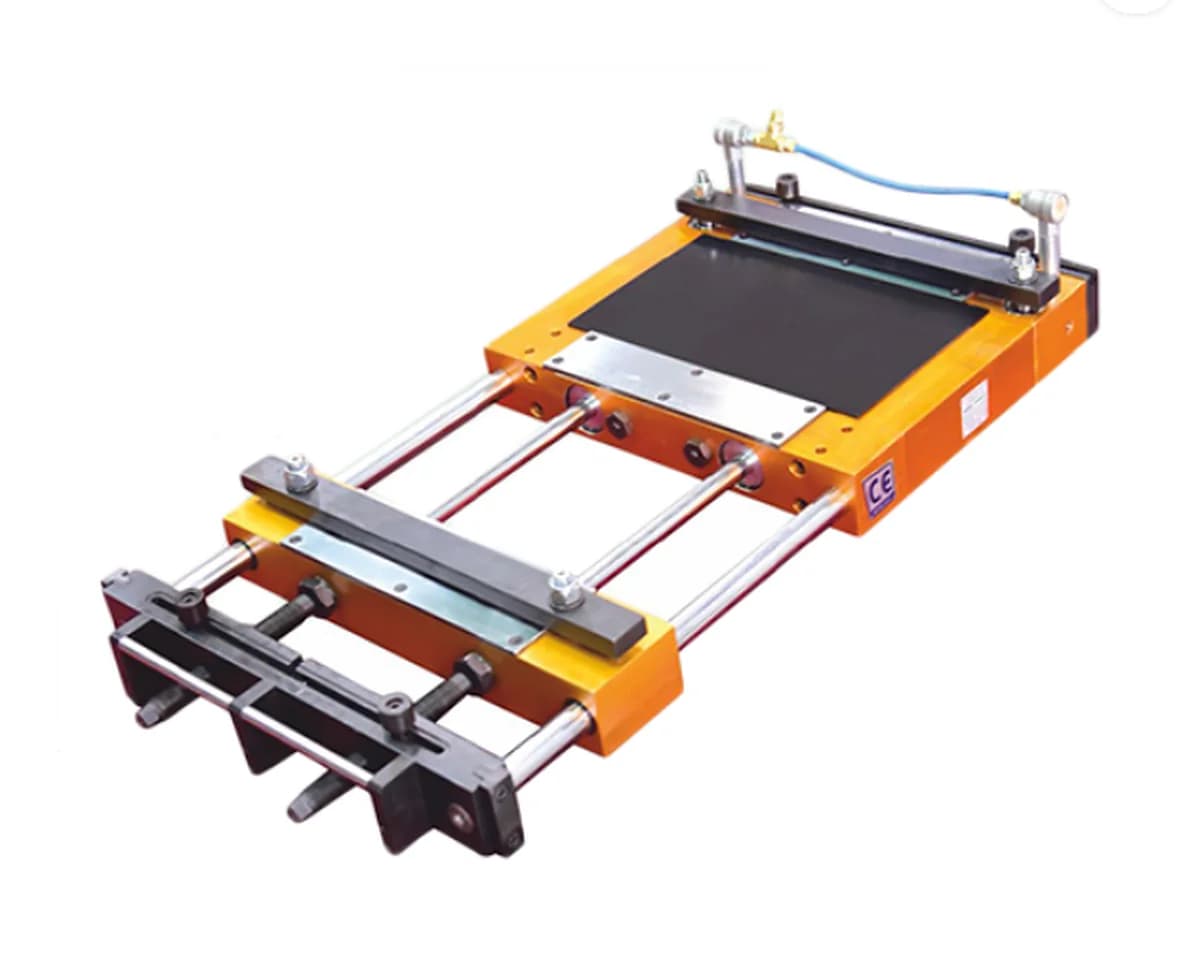

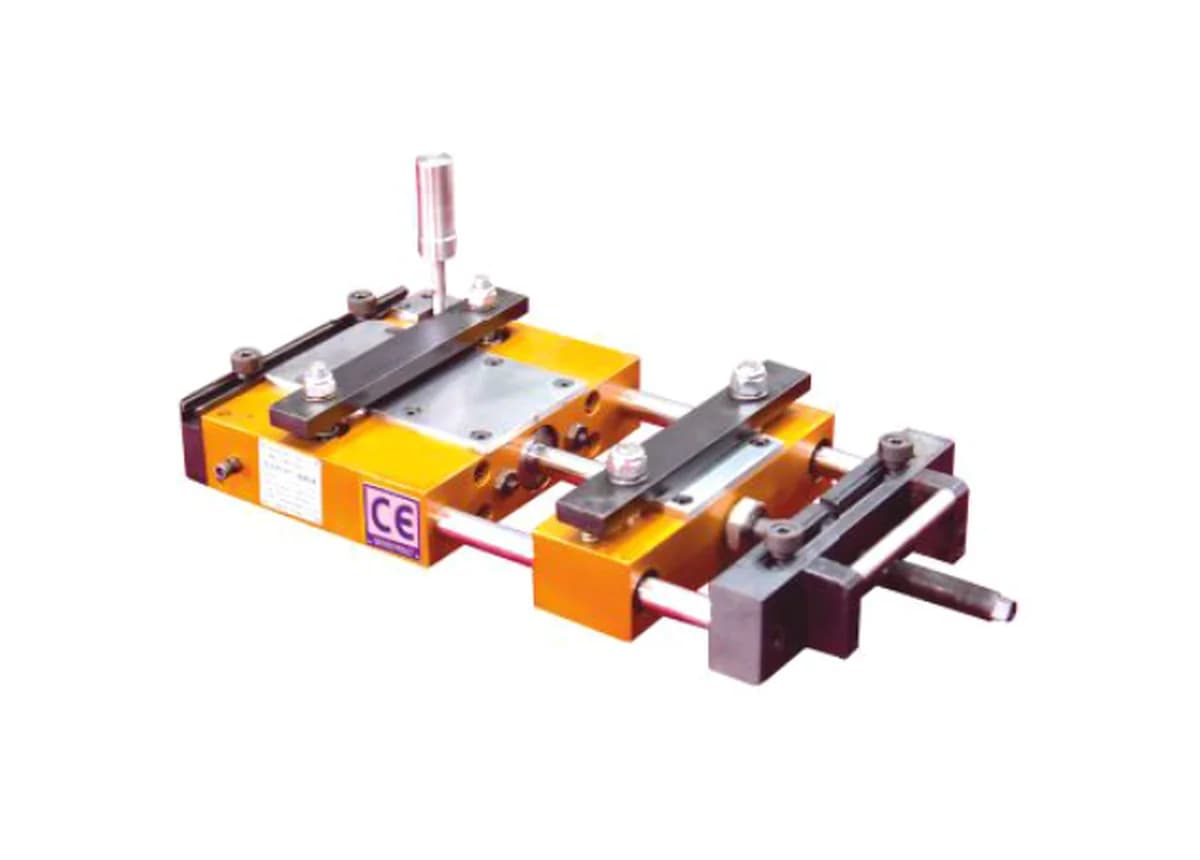

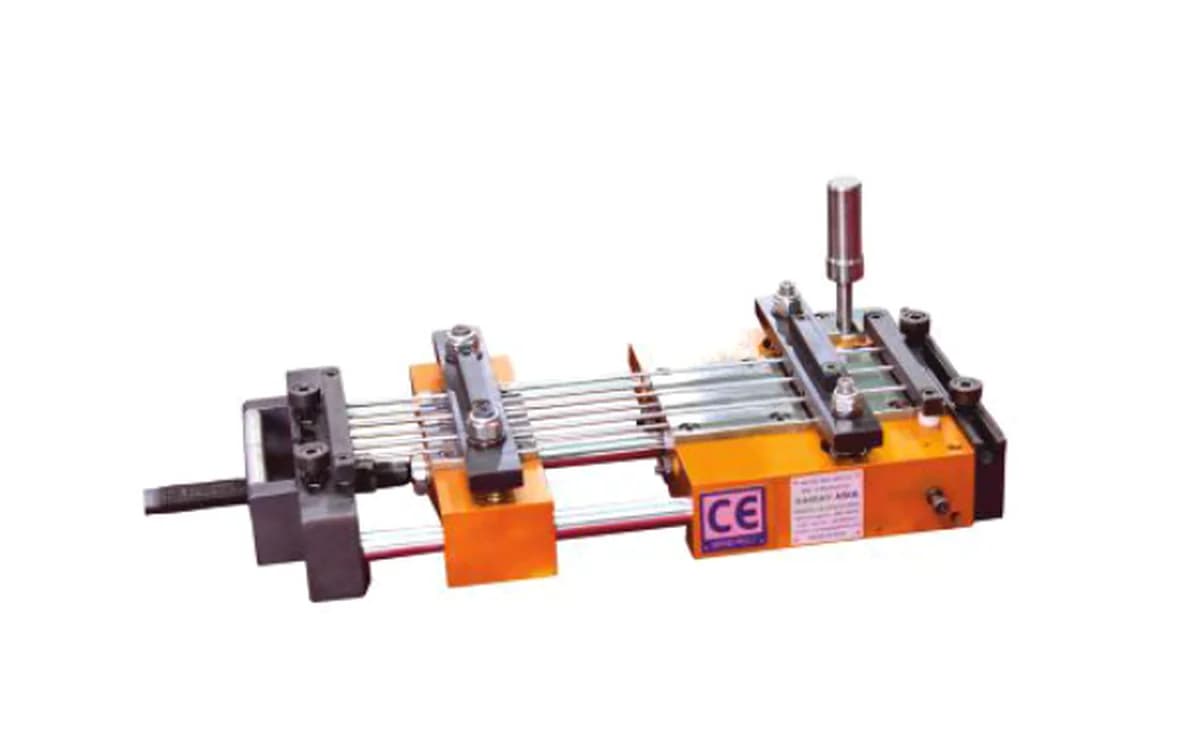

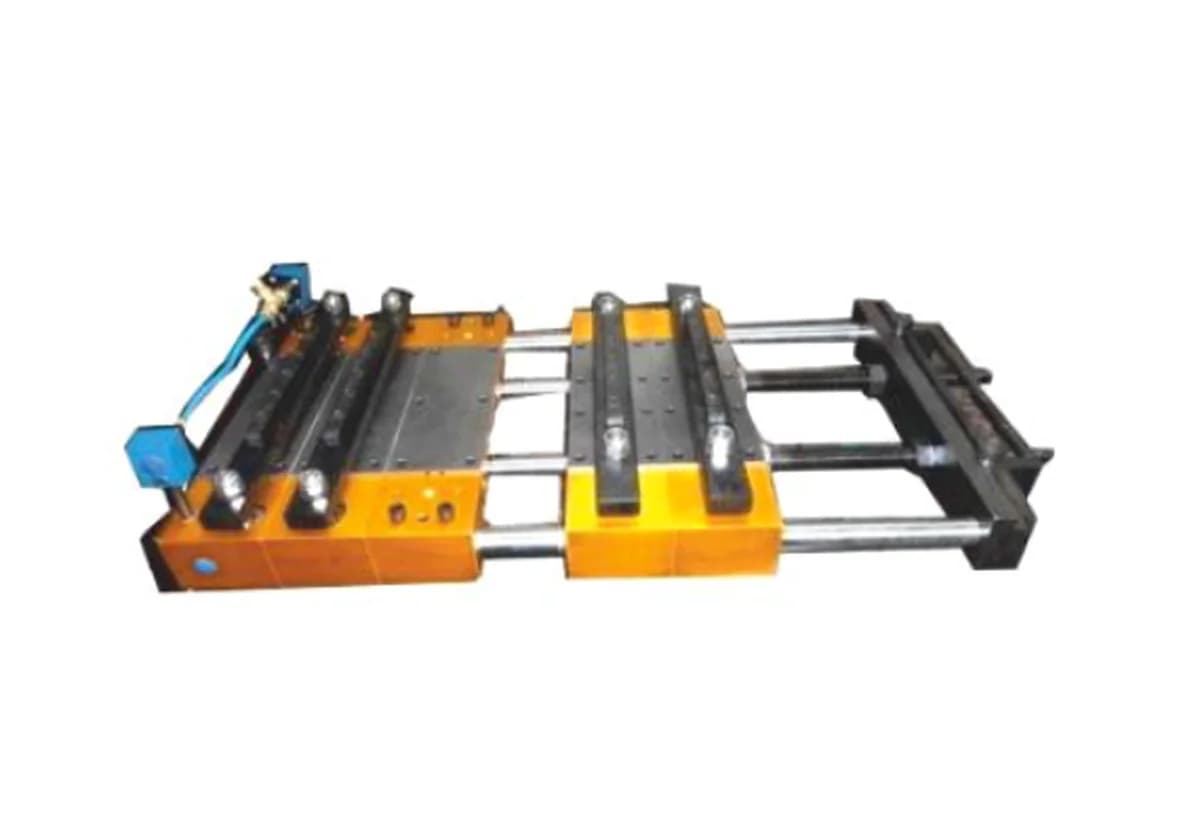

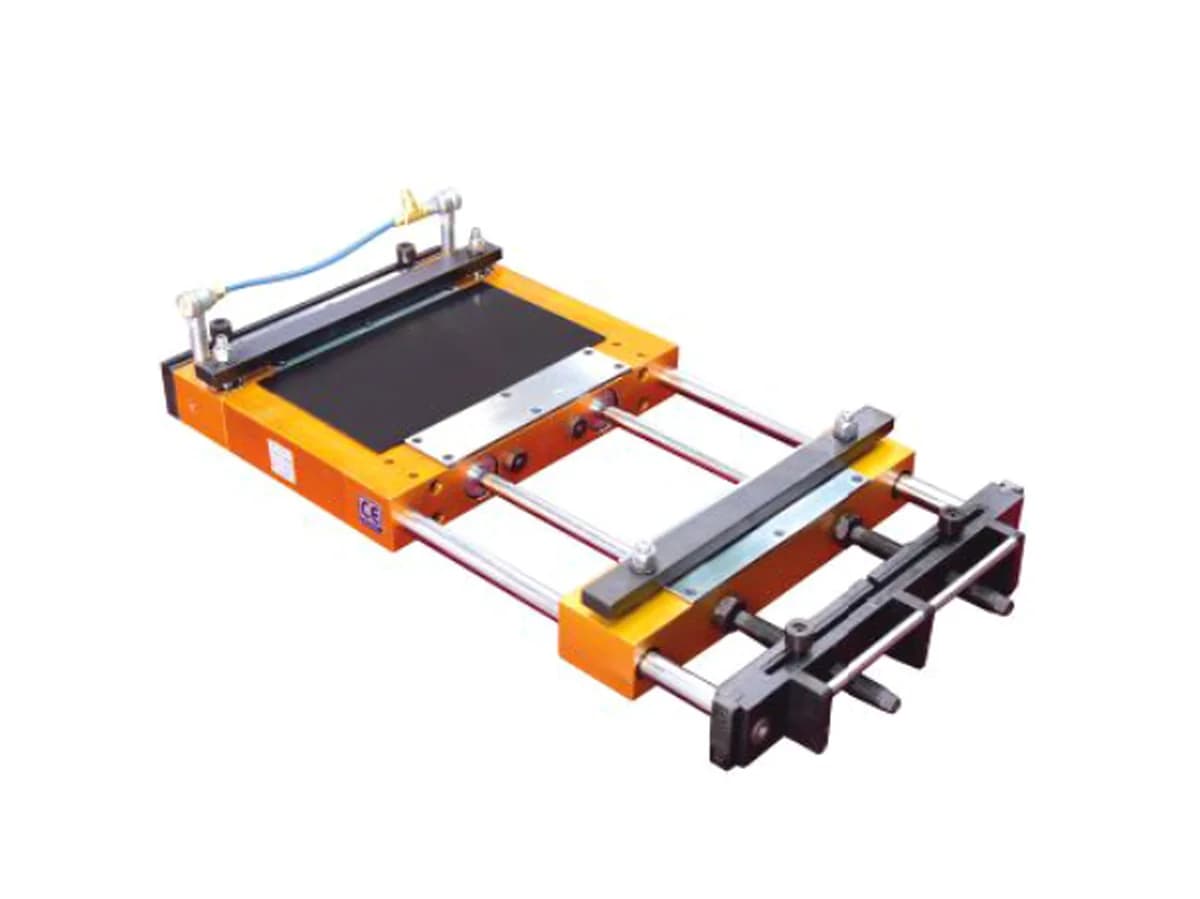

High Precision Pneumatic Feeder – HEAVY-TIC Series — S-A/23
These precision pneumatic feeders optimize sheet metal processing lines by ensuring consistent material handling and accurate cut lengths. Units integrate seamlessly with automated press brakes and coil lines for efficient manufacturing. • Adjustable feeding lengths accommodate various coil dimensions • Supports multiple material thicknesses for diverse applications • Variable speed control optimizes production throughput • Designed for standard automation integration
Specifications
For: S-A/23- Material Width Max (MM)
- 102
- Feeding Length Max (MM)
- 102
- Material Thickness Max (MM)
- 4
- Speed-Per Min (Max)
- 80
Configurations
Click a row to switch| Variant | Feeding Length Max (MM) | Material Thickness Max (MM) | Material Width Max (MM) | Speed-Per Min (Max) | Price |
|---|---|---|---|---|---|
| S-A/23 | 102 | 4 | 102 | 80 | ₹77,728 |
| S-A/24 | 202 | 3.5 | 102 | 70 | ₹90,474 |
| S-A/25 | 302 | 3 | 102 | 60 | ₹1,22,416 |
| S-A/26 | 402 | 2.5 | 102 | 50 | ₹1,40,250 |
| S-A/27 | 152 | 3.9 | 152 | 80 | ₹99,120 |
| S-A/30 | 202 | 3.2 | 202 | 60 | ₹1,11,104 |
| S-A/31 | 302 | 2.9 | 202 | 50 | ₹1,29,234 |
Robust Pneumatic Design and Reliability
- Pneumatic actuation ensures smooth and responsive material movement
- Heavy-duty construction supports continuous industrial operation
- Minimal maintenance requirements for reduced operational costs
- Reliable performance under varying production loads
- Compatible with standard factory air supply systems
Ideal Applications and Industries
- Sheet metal fabrication shops requiring precise coil feeding
- Automated press brake operations needing synchronized input
- Coil line processing for continuous manufacturing workflows
- High-volume production environments demanding consistent accuracy
- Metal forming operations utilizing pneumatic feeding mechanisms
Production Efficiency and Integration
- Variable speed control optimizes production throughput
- Designed for standard automation integration
- Consistent material handling reduces waste and downtime
- Accurate cut lengths improve downstream processing quality
- Adaptable to various coil dimensions for flexible manufacturing
HEAVY-TIC Series Performance Overview
- Optimizes sheet metal processing lines with consistent material handling
- Ensures accurate cut lengths for precision manufacturing requirements
- Integrates seamlessly with automated press brakes and coil lines
- Adjustable feeding lengths accommodate various coil dimensions up to 52 mm
- Material width capacity extends up to 52 mm for diverse applications
- Supports multiple material thicknesses up to 1.20 mm for diverse applications
- Variable speed control optimizes production throughput up to 140 per minute
- Designed for standard automation integration across industrial setups
Frequently asked
Can this feeder handle different material types?
Yes, it supports multiple material thicknesses for diverse applications including steel and aluminum.
Is integration with existing machinery difficult?
No, the unit is designed for standard automation integration with automated press brakes.
How is feeding length adjusted?
Adjustable feeding lengths accommodate various coil dimensions to meet specific cut requirements.
More questions buyers ask
What is the Samay-Asia HEAVY-TIC Series Pneumatic Feeder?
It is a high-precision pneumatic feeder designed to optimize sheet metal processing lines by ensuring consistent material handling and accurate cut lengths.
What industries use this pneumatic feeder?
It is ideal for sheet metal fabrication shops, automated press brake operations, and coil line processing for continuous manufacturing workflows.
Can it handle different material thicknesses?
Yes, it supports multiple material thicknesses ranging from 2.5mm to 4mm depending on the specific variant.
What is the maximum feeding speed?
The feeding speed varies by model, with a maximum speed of up to 80 strokes per minute (SPM).
Is it easy to integrate with existing machinery?
Yes, the unit is designed for seamless integration with standard automation systems and press brakes.
Does it require high maintenance?
No, its heavy-duty construction and robust pneumatic design ensure minimal maintenance requirements.
What is the maximum feeding length?
The feeding length ranges from 102mm to 402mm, depending on the variant chosen.
What is the maximum material width supported?
The HEAVY-TIC series supports material widths from 102mm up to 202mm.
Does it come with variable speed control?
Yes, variable speed control is included to optimize production throughput.
Is pan-India delivery available?
Yes, we offer pan-India delivery along with GST invoices for all B2B purchases.
Who should choose the S-A/23 variant?
The S-A/23 is perfect for operations requiring up to 102mm feeding length and width, with a maximum thickness of 4mm and high speed of 80 SPM.
Who should choose the S-A/24 variant?
Choose the S-A/24 if you need a longer feeding length of 202mm for 102mm wide materials up to 3.5mm thick.
Who should choose the S-A/25 variant?
The S-A/25 is ideal for 302mm feeding lengths on 102mm wide materials, operating at 60 SPM.
Who should choose the S-A/26 variant?
Select the S-A/26 for maximum feeding length of 402mm on 102mm wide materials up to 2.5mm thick.
Who should choose the S-A/27 variant?
The S-A/27 is best for wider materials up to 152mm, offering a 152mm feeding length and high speed of 80 SPM.
Who should choose the S-A/30 variant?
Choose the S-A/30 for handling 202mm wide materials with a 202mm feeding length and 3.2mm thickness capacity.
Who should choose the S-A/31 variant?
The S-A/31 is designed for 202mm wide materials requiring a longer 302mm feeding length at 50 SPM.
What is the difference between the S-A/23 and S-A/27 models?
The S-A/23 handles materials up to 102mm wide and 4mm thick, while the S-A/27 accommodates wider materials up to 152mm and 3.9mm thick, both operating at 80 SPM.
How does the S-A/26 compare to the S-A/31?
The S-A/26 offers a longer feeding length of 402mm for 102mm wide materials, whereas the S-A/31 provides a 302mm feeding length for wider 202mm materials. Both operate at 50 SPM.
Which model offers the highest speed?
Both the S-A/23 and S-A/27 models offer the highest speed of 80 strokes per minute (SPM).
